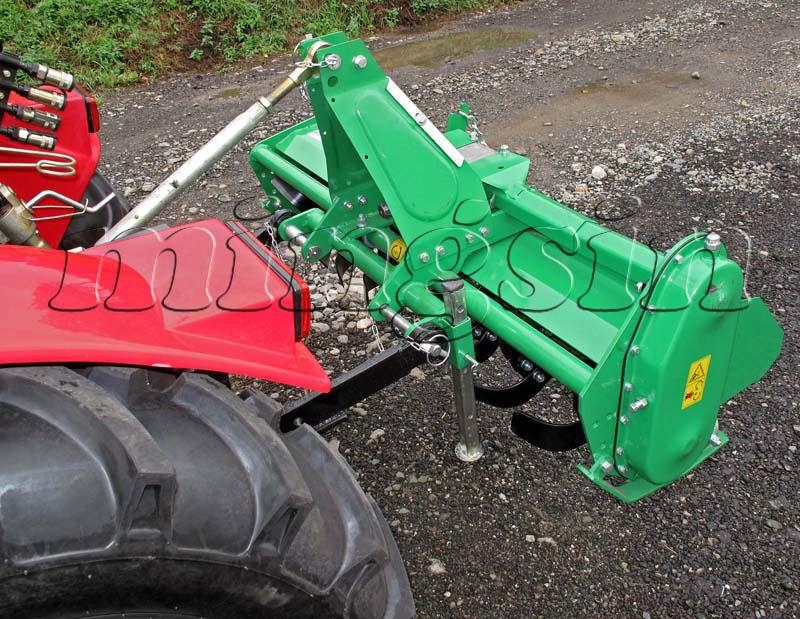

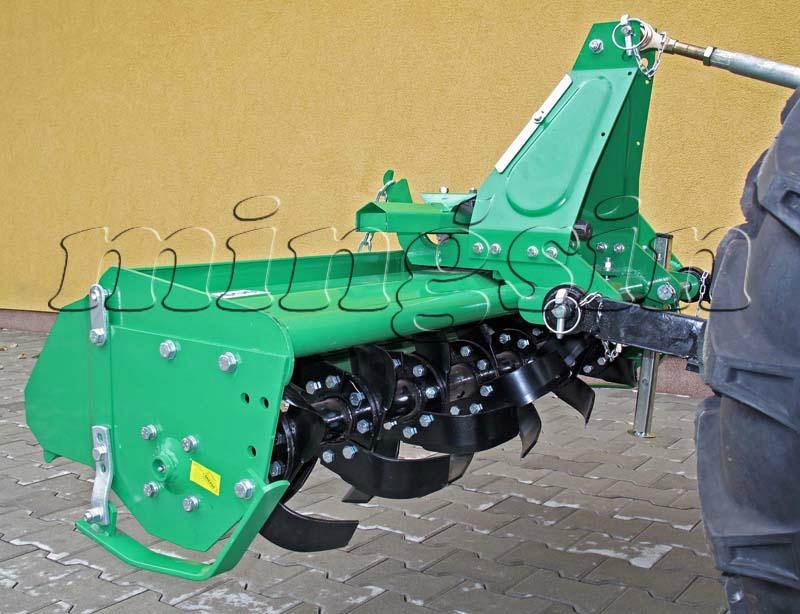

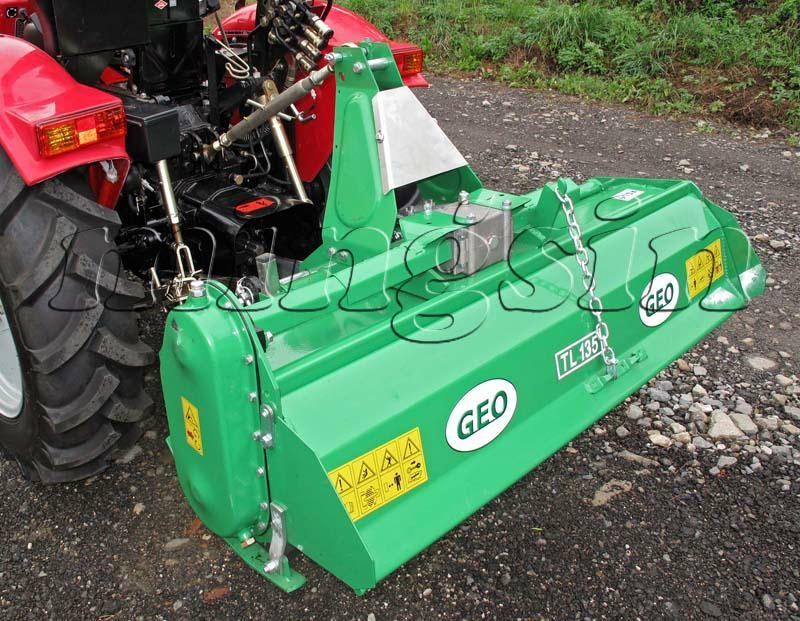

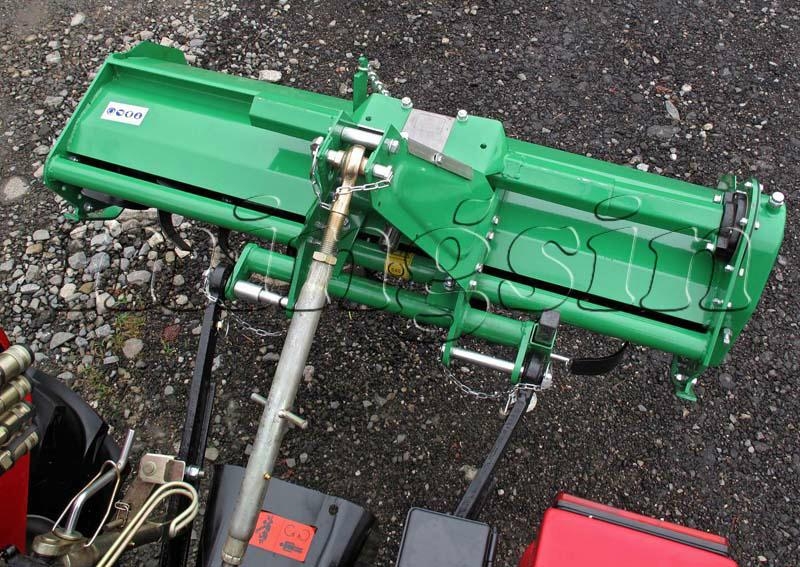

TL light series rotary tiller(side chain drive)
|
|
| Model No.︰ | TL-85, TL-135 |
| Brand Name︰ | MINGSIN |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|
|
|
| Model |
TL-85 |
TL-95 |
TL-105 |
TL-115 |
TL-125 |
TL-135 |
| Tractor |
Power |
15-25HP |
18-25HP |
20-30HP |
20-30HP |
25-35HP |
30-40HP |
| Type of Linkage |
Three-Point Hitch Linkage |
| Speed of PTO (r/min) |
540 |
| Working width (cm) |
85 |
95 |
105 |
115 |
125 |
135 |
| Blade shaft (rpm) |
210 |
210 |
210 |
210 |
210 |
210 |
| Number of blades |
16 |
16 |
20 |
24 |
28 |
28 |
| Tillage Width (cm) |
85 |
95 |
105 |
115 |
125 |
135 |
| Tillage Depth (cm) |
8-12 |
8-12 |
8-12 |
8-12 |
8-12 |
8-12 |
| Speed of Cultivator shaft (r/min) |
210 |
210 |
210 |
210 |
210 |
210 |
| Number of Blade (pieces) |
16 |
16 |
20 |
24 |
28 |
32 |
| Net Weight (kg) |
96 |
108 |
116 |
129 |
132 |
142 |
| Gross weight (kg) |
152 |
160 |
172 |
182 |
192 |
202
|
|
|
|
|
| Advantages︰ | TL LIGHT SERIES ROTARY TILLER
1. Well-known In Europe
2. Certification: CE Standard
3. Low Shock And Noise
4. Suitable For The 4 Wheel Tractors
5. High Welding Processes And Surface Quality
6. Change Color Upon Request
7. Cast-iron Gearbox
8. Side Drive
9. Four Spiral Blades Per Flange
10. Adjustable Side Skids To Obtain The Desired Working Depth, Cat
11. I and II Universal Three-point Hitch, EC Safety Guards, Adjustable Rear Shield, Cardan Shaft Support
12. Suitable For Soil Preparation, In The Vineyard, Nursery, Orchard, And For Gardening |
| Standard Met︰ | CE |
|
|
