MAIN PARAMETERS:
|

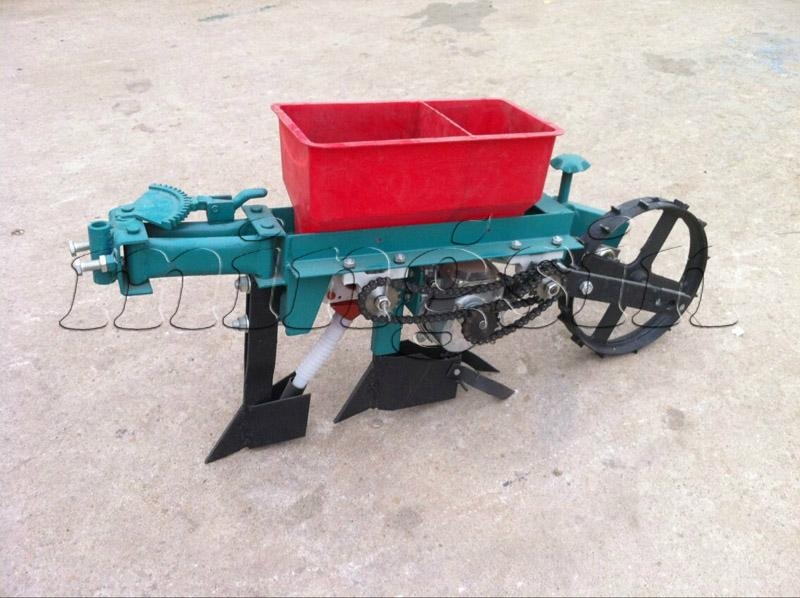

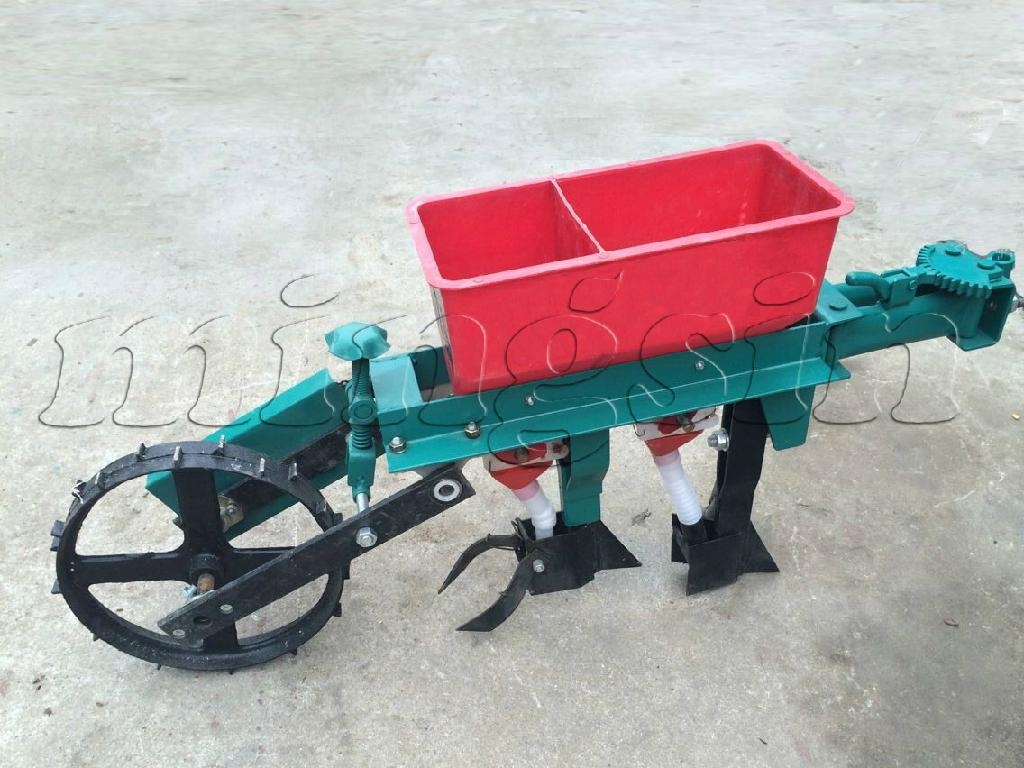

MAIZE SOWING MACHINE
|
|
Overall dimensions
|
1150*260*680mm
|
Seed tank capacity
|
3kg - 4kg
|
|
Row number
|
One row
|
Net weight
|
32kg
|
|
Sowing depth
|
10 - 35mm
|
Productivity
|
0.2 - 0.3333ha./h.
|
|
Mated power
|
6 - 20hp
|
Fertilizing quantity
|
150 - 450kg/ha.
|
|
Planting spacing
|
190-350mm
|
Sowing quantity
|
22.5 - 60kg/ha.
|
THE DIFFERENCE BETWEEN THE SEED METERING DEVICES:
- THE PRECISION SOWING MACHINE COULD SOW THE MAIZE WITH ONE CORN IN ONE HOLE, SO WE CALL IT AS PRECISION SOWING MACHINE. THE ORDINARY SOWING MACHINE SHOULD SOW 1 TO 3 CORNS IN ONE HOLE. IN ONE WORD, THE PRECISION SOWING MACHINE COULD CONTROL THE SOWING CAPACITY PRECISLY; THE ORDINARY SOWING MACHINE COULD NOT DO THAT.

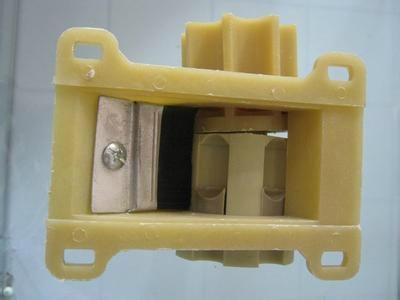

- WHEN THE USER WANT TO ADJUST THE PLANTING SPACING, IT IS EASY FOR THE USER TO ADJUST IT BY PULLING THE ADJUSTING LEVER OF THE SEED METERING DEVICE OF THE PRECISION MAIZE SOWING MACHINE, AND THERE IS THE GEARBOX IN THE SEED METERING DEVICE THAT COULD ADJUST IT EASILY. FOR THE ORDINARY MAIZE SOWING MACHINE, THE USER MUST CHANGE THE CHAIN WHEELS WHEN THEY WANT TO ADJUST THE PLANTING SPACING. ALONG WITH EACH SET ORDINARY MAIZE SOWING MACHINE, WE SHOULD SUPPLY EXTRA TWO PIECES OF CHAIN WHEEL.
