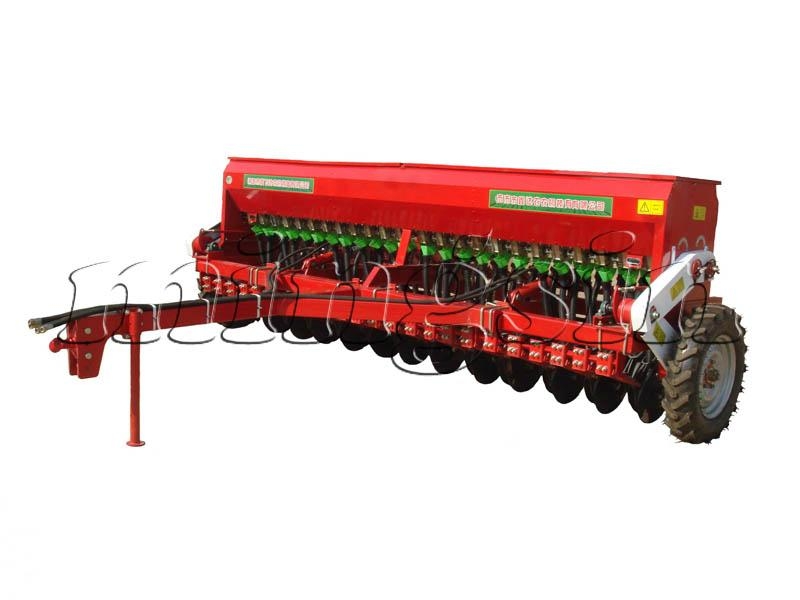

2BMF series seeder
|
|
| Model No.︰ | 2BMF series |
| Brand Name︰ | MINGSIN |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|
|
|
|
Type
|
2BMF-16
|
2BMF-18
|
2BMF-20
|
2BMF-24
|
2BMF-30
|
2BMF-32
|
2BMF-36
|
|
Overall size(cm)
|
260×300×137
|
260×330×137
|
260×360×137
|
260×420×137
|
260×510×137
|
260×540×137
|
260×600×137
|
|
Total weight(kg)
|
780
|
860
|
950
|
1150
|
1460
|
1580
|
1780
|
|
Working width (mm)
|
2400
|
2700
|
3000
|
3600
|
4500
|
4800
|
5400
|
|
Sowing depth(mm)
|
40-80
|
40-80
|
40-80
|
40-80
|
40-80
|
40-80
|
40-80
|
|
Matched power (hp)
|
50-70
|
50-70
|
70-90
|
75-100
|
100-120
|
100-120
|
100-120
|
|
Drive model
|
Chain drive
|
Chain drive
|
Chain drive
|
Chain drive
|
Chain drive
|
Chain drive
|
Chain drive
|
|
Fertilizer capacity (L)
|
230
|
260
|
286
|
345
|
438
|
458
|
515
|
|
Seed capacity (L)
|
275
|
310
|
345
|
415
|
530
|
552
|
620
|
|
Seed capacity/ per ha (kg/ha)
|
0-540
|
0-540
|
0-540
|
0-540
|
0-540
|
0-540
|
0-540
|
|
Fertilizer capacity/per ha (kg/ha)
|
0-450
|
0-450
|
0-450
|
0-450
|
0-450
|
0-450
|
0-450
|
|
Efficiency (kg/ha)
|
1.2-1.9
|
1.3-2.2
|
1.5-2.4
|
1.8-2.9
|
2.2-3.6
|
2.4-3.7
|
2.7-4.4
|
|
Working speed (km/h)
|
5-8
|
5-8
|
5-8
|
5-8
|
5-8
|
5-8
|
5-8
|
|
Linkage
|
Trailed or three point linkage
|
|
Seeding rows
|
16
|
18
|
20
|
24
|
30
|
32
|
36
|
|
Distance between front and back disc opener (mm)
|
120
|
120
|
120
|
120
|
120
|
120
|
|
Opener
|
Double bearing disc opener
|
|
Row distance(mm)
|
150 (adjustable)
|
|
Clutch for trailed type
|
Dental clutch
|
|
Elevating form for trailed type
|
Hydraulic drive
|
|
|
|
|
| Advantages︰ | This series of fertilizing and sowing planter can be mounted with 50-120hp tractor . Applicable to the plains and hilly areas of wheat and maize seed and fertilizer.It has advantages of favourable universality,wide range of applying,even seeding and so on. |
|
|
