FM series finish mower
|
|
| Model No.︰ | FM series |
| Brand Name︰ | MINGSIN |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|
|
|
|
MODELS
|
FM-120
|
FM-150
|
FM-180
|
|
CUTTING WIDTH(INCHES)
|
120cm(48'')
|
150cm(60'')
|
180cm(72'')
|
|
DIMENSIONS
|
1330*860*480mm
|
1640*995*480mm
|
1930*1180*480mm
|
|
CUTTING HEIGHT (INCHES)
|
25-100mm(1''-4'')
|
25-100mm(1''-4'')
|
25-100mm(1''-4'')
|
|
WORKING EFFICIENCY
|
4000-10000m2
|
1500-12000m2
|
5000-15000m2
|
|
TRACTOR POWER
|
15-30hp
|
25-50hp
|
40-70hp
|
|
WHEELS SIZES
|
Solid Rubber
|
Ties with ball bearings (8''*3'')
|
210*80mm
|
|
No.OF TRANSIMISSION SHAFTS
|
4
|
4
|
4
|
|
No.OF BLADES
|
3
|
3
|
3
|
|
BLADE MATERIAL
|
spring steel
|
|
|
|
BLADE SIZE LENGTH*WIDTH*THICKNESS
|
422*606mm
|
522*60*6mm
|
623*60*8mm
|
|
BLADE SPEED
|
3375rpm 4470m/s
|
2700rps 4425m/min
|
2250rpm 4401m/s
|
|
3-PIONT CATEGORY HITCH
|
Ⅰ
|
ⅠorⅡ
|
ⅠorⅡ
|
|
PTO.POWER REQUIRED
|
10-16kw 13-21hp
|
12-24kw 16-33hp
|
25-32kw 21-43hp
|
|
OPTIMUM P.T.O.
|
540rpm
|
540rpm
|
540rpm
|
|
P.T.O.SPINE
|
6*6*900mm
|
6*6*900mm
|
6*6*900mm
|
|
MACHINE WEIGHT
|
195kg
|
215kg
|
265kg
|
|
OIL TYPE
|
EP SAE 80W ®C 90
|
|
OIL AMOUNT
|
0.9L(GAL.0.20)
|
|
DISCHARGE R-rear;S-side(left);RC-rear discharge with chain
|
|
Example:FM-150RC,Cutting 150cm rear discharge with chain
|
|
|
|
|

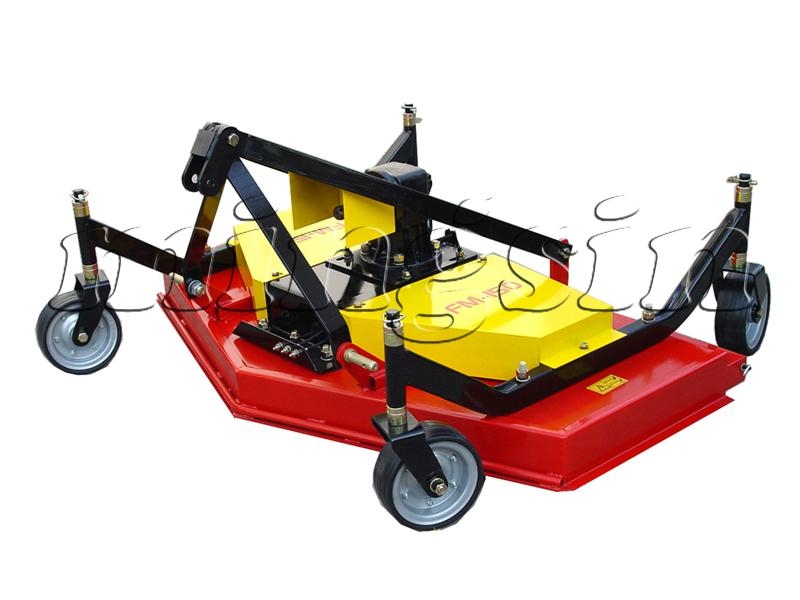

Product Image
|
|
|
