CSL series skid steer loader
|
|
| Model No.︰ | CSL563-1253 |
| Brand Name︰ | - |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|
|
|
|
Model
|
CSL563
|
CSL663
|
CSL763
|
CSL963
|
CSL1253
|
|
Engine model
|
China engine
|
China engine
|
Japan engine
|
Japan engine
|
Japan engine
|
|
Rated power
|
36.8kW
|
36.8kW
|
44kW
|
54kW
|
67kW
|
|
Rated speed
|
2650rpm
|
2650rpm
|
2500rpm
|
2600rpm
|
2650rpm
|
|
Rated load
|
560kg
|
660kg
|
760kg
|
960kg
|
1250kg
|
|
Operating weight
|
2300kg
|
2600kg
|
3600kg
|
3250kg
|
3980kg
|
|
Tiping load
|
1500kg
|
1700kg
|
1900kg
|
1900kg
|
2600kg
|
|
Bucket capacity
|
0.42m3
|
0.47m3
|
0.55m3
|
0.57m3
|
0.67m3
|
|
Max. gradeability
|
20%
|
20%
|
20%
|
20%
|
20%
|
|
Max.bucket break force
|
1300kg
|
1500kg
|
1700kg
|
2480kg
|
2500kg
|
|
Max.lift arm break force
|
1100kg
|
1300kg
|
1500kg
|
2430kg
|
2400kg
|
|
Travel speed
|
0-10.3km/h.
|
0-11.2km/h.
|
0-11.2km/h.
|
0-12.6km/h.
|
0-.8/0-23km/h.
|
|
Tire specification
|
10.0/75-15.3
|
10.0/75-15.3
|
12-16.5
|
12-16.5
|
12-16.5
|
|
Overall length with bucket
|
3145mm
|
3450mm
|
3500mm
|
3590mm
|
3900mm
|
|
Overall width
|
1680mm
|
1680mm
|
2020mm
|
1880mm
|
2020mm
|
|
Overall height
|
1935mm
|
2030mm
|
2260mm
|
2100mm
|
2320mm
|
|
Wheel base
|
991mm
|
991mm
|
1050mm
|
1116mm
|
1300mm
|
|
Tread width
|
1430mm
|
1460mm
|
1660mm
|
1475mm
|
1680mm
|
|
Overall operating height
|
3850mm
|
3900mm
|
3970mm
|
4020mm
|
4230mm
|
|
Height to hinge pin,fully raised
|
2900mm
|
2960mm
|
2970mm
|
3123mm
|
3300mm
|
|
Max. dumping height
|
2200mm
|
2150mm
|
2200mm
|
2395mm
|
2570mm
|
|
Dumping distance
|
480mm
|
750mm
|
640mm
|
625mm
|
770mm
|
|
Dumping angle
|
44°
|
44°
|
37°
|
43°
|
37°
|
|
|
|
|
|
| Advantages︰ | CSL series skid steer loader is widely used in road engineering, municipal sanitation, warehouses, and material yard and on other occasions for material shipment and job executions in narrow space.
1. With compact structure, flexible movement, it has great power and extremely high efficiency in operation; the skid steering makes it situ rotation and minimum turning radius.
2. Through the accompanied quick-change, loading, mining, fork movement, bulldozers, holes digging, trenching and other operations can be realized. This machine is a loader of latest model in accordance with high-quality, high-efficiency and multifunction required by modern engineering work.
3. It uses the original Sauer hydraulic system imported from US. |
|
|

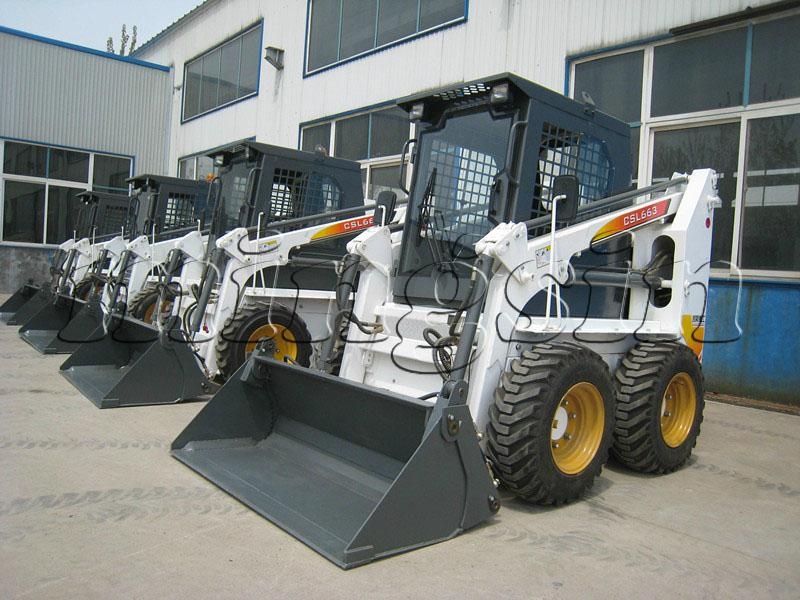

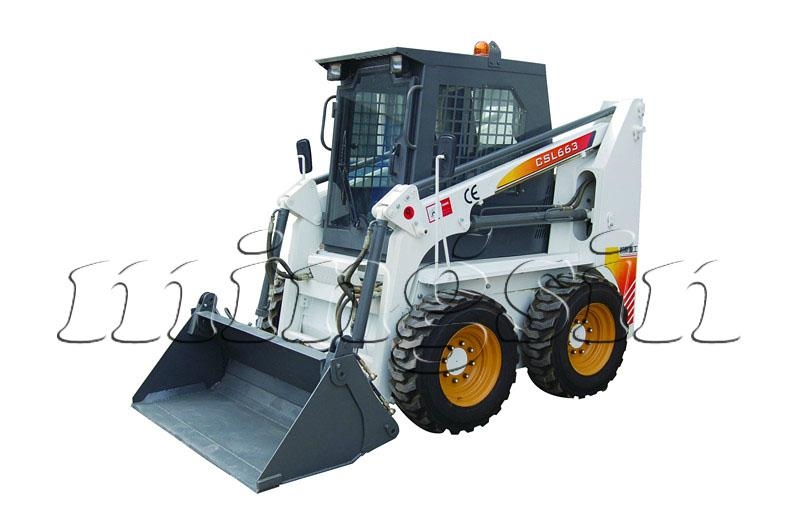

Product Image
|
|
|
