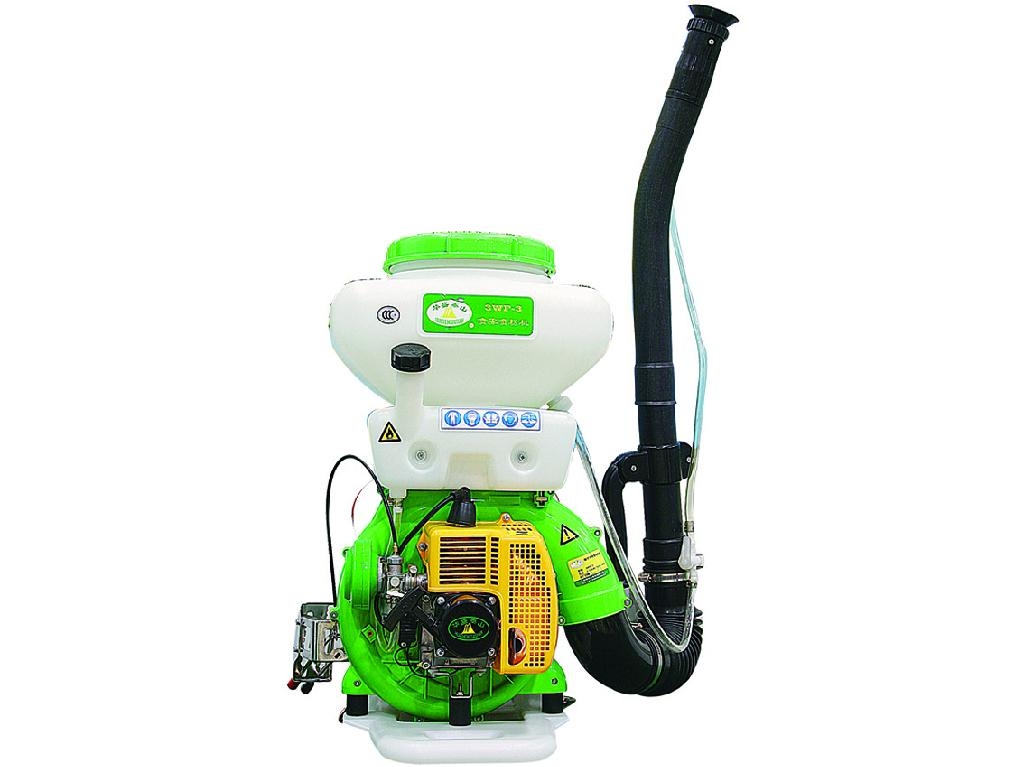

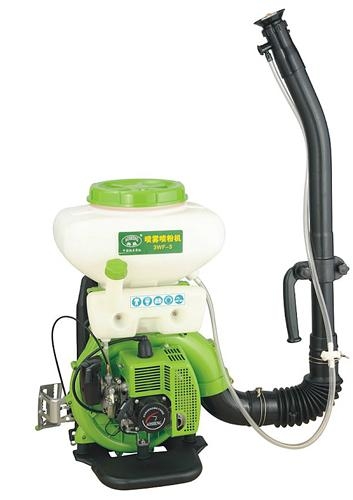

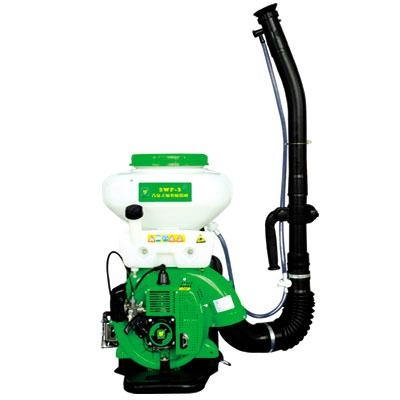

3WF-3 Mist duster
|
|
| Model No.︰ | 3WF-3/3WF-3A |
| Brand Name︰ | MINGSIN |
| Country of Origin︰ | China |
| Unit Price︰ | CNY ¥ 500 / pc |
| Minimum Order︰ | 50 pc |
|
|
|
|
|
|
|
3WF-3 mist duster is portable, flexible and high-efficient equipment for plant protection. It is suitable for use in prevention of plant diseases and controlling pests in large plantations and crop fields where cotton, wheat, paddy, fruit tree, tea, etc. are planted. It can also be used for applying herbicides, sanitation and epidemic and prevention, spreading granular fertilizer and granular chemicals, etc. This machine can also be suited for use in mountain area and hilly land.
|
Model
|
3WF-3
|
3WF-3A
|
|
Overall dimensions (L*W*H) mm
|
420*500*690
|
420*500*800
|
|
Net weight kg
|
≤ 11
|
≤ 11.5
|
|
Tank volume L
|
14
|
26
|
|
Rotary speed of fan r/min.
|
7500-8000
|
|
Discharge rate of chemical kg/min
|
Sprayer mixture
|
≥ 4
|
|
Dust
|
≥ 6
|
|
Delivery lift m
|
≥ 11
|
|
Engine
|
Air cooled and two stroke gasoline engine model 1E40FP-3Z
|
|
Fuel
|
Mixture of gasoline and two-stoke oil
|
|
Volume ratio of mixture fuel between petrol and mobile oil
|
Determined by the oil instruction
|
|
Way of ignition
|
CDI
|
|
Way of starting
|
Recoil starting
|
|
Way of stopping
|
Type of full shut fuel throttle
|
|
|
|
|
| Advantages︰ | 1. The plastic body makes its light weight.
2. Unique designed structure. Reinforced plastic or stainless steel parts for the chemical, which has the property of anti-corrosion and long life.
3. Big size chemical filler.
4. Good stability. |
| Min Order︰ | 50 |
| Ship Date︰ | Within 25 days after get the payment |
| Standard Met︰ | ISO9001, CE, CCC |
|
|
