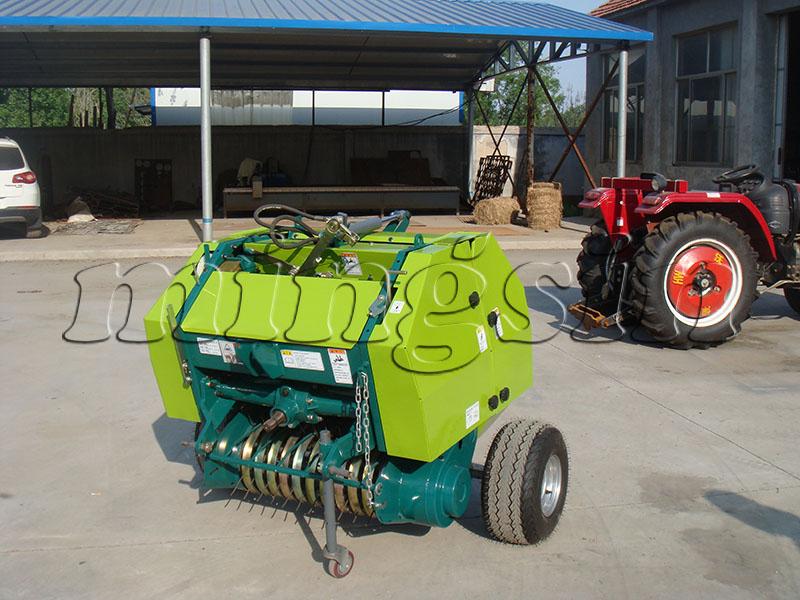

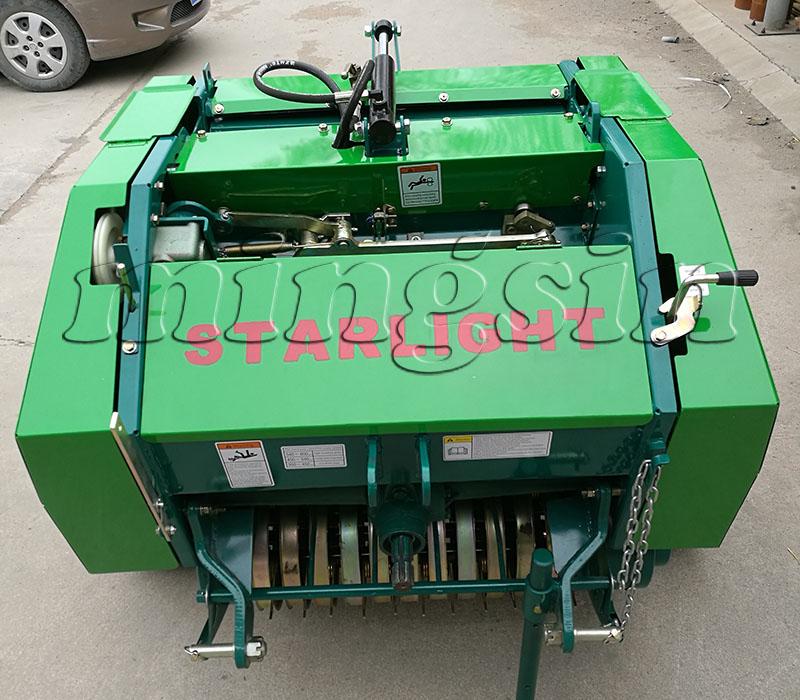

Main Features of Hay Baler
1. Clean pick up, straw bundle density adjustable, high operating efficiency,and applicability

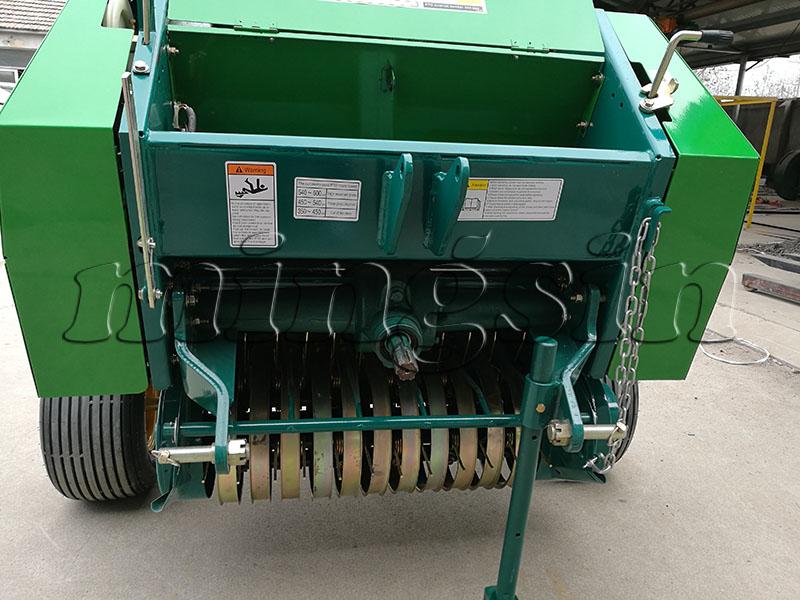

2. With the spring teeth of the pick up system, the body through the teeth, pick up delivery, collection of teeth and other actions then pick up the ground grass straw.
3. With the spring teeth of the pick up system, the body through the teeth, pick up delivery, collection of teeth and other actions then pick up the ground grass straw.
4. Spiral type rotor can be smooth and effective simultaneous transmission and cutting of forage.
5. The round baler’s chain drive system used automatic lubrication design, and equipped with advanced electrical control system.
Parameters
|
Model
|
Unit
|
YK0850
|
YK0870
|
|
Bale size dia*len
|
mm
|
500*700
|
610*700
|
|
Dimensions
|
cm
|
115*130*120
|
130*130*135
|
|
Weight
|
kg
|
380
|
440
|
|
Pickup width
|
mm
|
800
|
800
|
|
Working speed
|
km/h
|
2~5
|
2~5
|
|
Capacity bales/hour
|
|
80-120
|
80-100
|
|
Tire size
|
|
16*6.5-8
|
16*6.5-8
|
|
Horsepower required
|
hp
|
18-50
|
25-60
|
|
PTO RPM
|
|
540
|
540
|
|
Roller number
|
|
10
|
12
|
|
The weight of bales
|
kgs
|
18-25
|
18-25
|
|
40HQ
|
sets
|
40
|
36
|
