Model
|
Unit
|
GT-5
|
|
Overall dimensions
|
mm
|
1500×840×900
|
|
Net weight
|
kg
|
52
|
|
Transmission
|
|
China, belt
|
|
Max speed (When engine on 3600)/rpm
|
km
|
Low shift 75 / High shift 168 / Reverse shift 59
|
|
Rational speed (When engine on 3600)/rpm
|
mm
|
Low shift 65 / High shift 140 / Reverse shift 46
|
|
Tilling depth
|
mm
|
100-200
|
|
Tilling width
|
|
830
|
|
Engine
|
Model
|
168F
|
|
Max. output
|
kw
|
3.7
|
|
Fuel Consumption
|
g/kw/h
|
395
|
|
Displacement
|
cc
|
163
|
|
Package Size
|
mm
|
76×72×40
|
|
|
|
|
| Advantages︰ | This power tiller is designed by our company based on all types of similar machines both at home and abroad. It adopts 6.5 horsepower gasoline engine and multistep gear transmission. The box is made of integral drawn steel plate, with the belt tension clutch, and handlebar adjustable in any position. It is in strong power, reliable performance, complete functions, high efficacy, and multiple purposes.
1. Its small-size, light-weight. Its horse power is strong and useful. Especially, it applies in narrow sections, terrace of mountain area, tea plantation, fruit woods, sheds and so on.

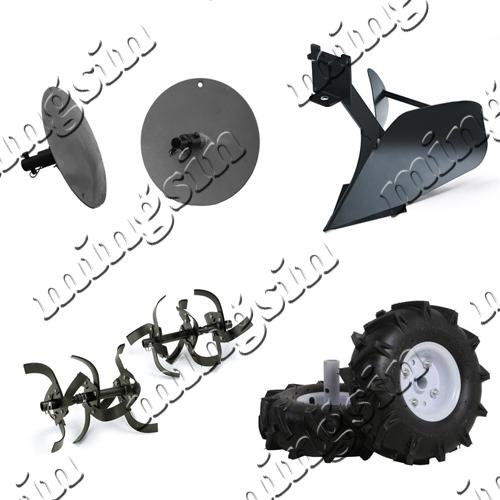

2. Its necessary farm machineries are all in readiness. With corresponding machineries, it can realize many functions, such as weeding. breaking soil, making furrows, hilling soil, irrigating, spraying pesticide, ploughing.
|
| Ship Date︰ | 15-29 days |
|
|
