Walking tractor, Motoblok, 10hp, model MX101-1
|
|
| Model No.︰ | MX101-1 |
| Brand Name︰ | MINGSIN |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|
|
|
| Model |
Unit |
MX-101 |
| Structure weight |
Without rotavator |
kg |
238 |
| With rotavator |
291 |
| Working weight (with rotavator) |
kg |
331 |
| Overall dimensions (LxWxH) |
mm |
2170x845 x 1150 |
| Number of blades |
PCS |
14 |
| Rototilling width |
mm |
700 |
| Type of tractor |
|
Single axle, dual-purpose for both traction & drive |
| Travelling speed |
Forword |
Km/h |
1.98, 3.08, 4.98, 8.04, 12.49, 20.2 |
| Reverse |
1.53, 6.18 |
| Type size |
|
6.00-12 |
| Wheel track |
mm |
680~740(adjustable) |
| Min. ground clearance |
mm |
210 |
| Min. turning radius |
m |
0.71 (without rotavator) |
| Model of engine |
|
190N |
| Type of engine |
|
Horizontal 4-stroke |
| Bore x stroke |
mm |
90×90 |
| Total displacement |
L |
0.573 |
| Compression ratio |
|
21:01 |
| Turing speed of crankshaft |
rpm |
2300 |
| 1-hour rated output |
KW/hp |
7.7/10.5 |
| 12-hour rated output |
KW/hp |
7.0/9.5 |
| Specific fuel consumption |
g/kw.h |
≤273.4 |
| Specific lube oil consumption |
g/kw.h |
≤2.72 |
| Cooling mode |
|
Condenser (Radiator) |
Main farm implements (optional)
|
Anti-skid steel wheel Model 100-640
Single-furrow plough Model 1LS-125
Turnover plough
Rotary tiller Model MX80D-1
Sprinkler Model 50BPZ-45
Swather/reaper Model 4GL-100
Trailer 7C-0.8 (Standard) |
|
|
|
|
| Advantages︰ | The MINGSIN Brand walking tractor / power tiller / Two-wheel tractor Model MX-101 is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. MX-101 walking tractor is more powerful and efficient than MX-81. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plough rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on. |
|
|
Product Image
|
|

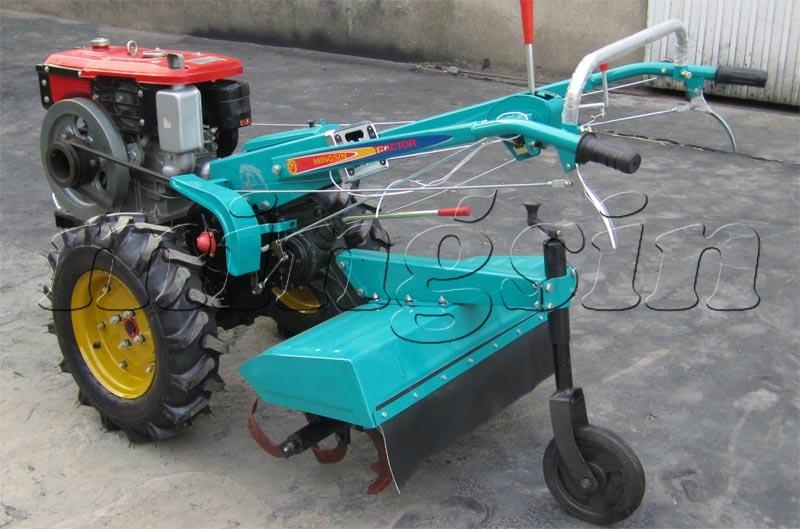

MX101 Walking Tractor
MX101 Walking Tractor
MX101 Walking Tractor
MX101 Walking Tractor
Implements of MX101 Walking Tractor
|
|
|
|
|
|
