Model No.︰ZL928 Series
Brand Name︰-
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
| Item | Unit | Specification |
| Model | ZL928 | |
| Rated load | Kg | 2000 |
| Rated bucket capacity | m3 | 0.7（1900） |
| Overall dimension (L×W×H) | mm | 6000×1900×2810 |
| Wheelbase | mm | 2200 |
| Wheel track | mm | 1510 |
| Min. turning radius | mm | 4250 |
| Max. climbing ability | ° | 30 |
| Min. ground clearance | mm | 345 |
| Max. dumping angle | ° | 45 |
| Max. dumping height | mm | 3200 |
| Min. discharge distance | mm | 960 |
| Type and pressure of tyre | 16/70-20；210KPa | |
| Max. speed | Km/h | 24 |
| Overall weight | Kg | 4400 |
| Item | Unit | Specification |
| Model | Huadong ZH4102G2 | |
| Power | KW | 47 |
| Rotate speed | r/min | 2400 |
| Type of cooling | Water cooling | |
| Item | Unit | Specification |
| Transmission | 2 forward shift,2 reverse shift | |
| torque converter | One-phase、single-stage、three element | |
| Brake control | Air assisted clamp type brake |
Advantages︰

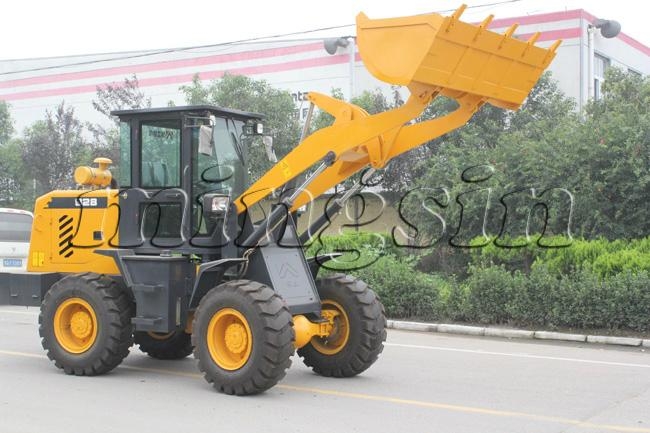

ZL928
1. Fully enclosed cab, bright and spacious; new cab damping system to make work more comfortable.
2. Huadong ZH4102G2 diesel engine, reliable, strong power, low fuel consumption, long service life.
3. Hydraulic load-sensing steering system makes turning more flexible and lightweight.
4. Working device with automatic leveling function, greatly reducing the driver's work intensity.
5. Using new dual seal piping, so that the hydraulic system is more reliable and stable.
6. Using a single-stage single three-component fixed-shaft gearbox with torque converter, make full use of engine power, increased torque, the machine has great traction.
7. Gearbox adopts new commutation control valve, making walking more flexible and convenient.
8. Foot brake system with dual afterburner pump gas oil caliper disc brake, braking force, easy, safe and reliable.
