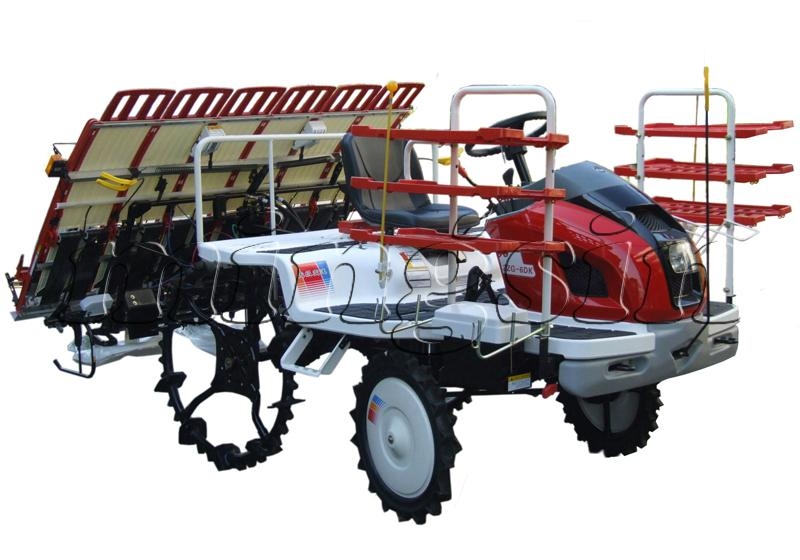

2ZG-6DK rice transplanter
|
|
| Model No.︰ | 2ZG-6DK |
| Country of Origin︰ | China |
|
|
|
|
|
|
|
|
Model
|
2ZG-6DK
|
|
Size L x W x H (mm)
|
3075×2200 ×1620
|
|
Minimum height (mm)
|
350
|
|
Weight (kg )
|
625
|
|
power
|
Model
|
GX610K1
|
|
Type
|
4-stroke OHV air-cooled gasoline engine
|
|
Rated Power (kw/ps)
|
10.3/14
|
|
Maximum power (kw/ps)
|
11.8/16
|
|
Maximum speed (rpm)
|
3600
|
|
Fuel
|
Unleaded petrol(93#/97#)
|
|
Capacity (L)
|
20
|
|
Running
|
Driving Mode
|
Four-wheel drive
|
|
Wheel
|
Front (mm)
|
Solid tire 650
|
|
Rear (mm)
|
Convex rubber antihelix 900
|
|
Variable speed
|
HMT
|
|
Number
|
forewords two gears, backwards one gear
|
|
Transplanter
|
Type
|
Rotary
|
|
Rows
|
6
|
|
Row spacing (cm)
|
30
|
|
Seedling spacing (cm)
|
22，18，16，14，12
|
|
Plants (each 3.3m2)
|
50，60，70，80，90
|
|
Depth (mm)
|
14-44 (six gears)
|
|
Balance device
|
TBS (Manually or automatically)
|
|
Adjust the volume
|
Horizontal(Times)
|
18，20，26
|
|
Vertical (mm)
|
8-17
|
|
Transplanting speed (m/s)
|
0-1.45
|
|
productivity
|
(hm2/h)
|
0.27-0.6
|
|
(Mu / h)
|
4-9
|
|
|
|
|
| Advantages︰ | • Select HONDA 11.8Kw(16ps) gasoline engines, high power, low emission, low noise.
• Configure the advanced economies, efficient transmission, using HMT continuously variable transmission, can be implemented faster and more convenient adjustment.
|
|
|
