Hand tractor 8hp, Model MX81
|
|
| Model No.︰ | MX81 |
| Brand Name︰ | MINGSIN |
| Country of Origin︰ | China |
|
|
|
|
|
|
|
| Model |
Unit |
MX-81 |
| Structure weight |
Without rotavator |
kg |
215 |
| With rotavator |
265 |
| Working weight (with rotavator) |
kg |
305 |
| Overall dimensions (LxWxH) |
mm |
2180x890 x 1250 |
| Number of blades |
PCS |
14 |
| Rototilling width |
mm |
700 |
| Type of tractor |
|
Single axle, dual-purpose for both traction & drive |
| Travelling speed |
Forword |
Km/h |
2.01, 3.32, 5.31, 6.76, 11.18, 17.86 |
| Reverse |
3.28, 11.03 |
| Type size |
|
6.00-12 |
| Wheel track |
mm |
650~730(normally use 730) |
| Min. ground clearance |
mm |
214 |
| Min. turning radius |
m |
0.9（with no rotavator） |
| Model of engine |
|
R180AN |
| Type of engine |
|
Horizontal 4-stroke |
| Bore x stroke |
mm |
80×80 |
| Total displacement |
L |
0.402 |
| Compression ratio |
|
22:01 |
| Turing speed of crankshaft |
rpm |
2600 |
| 1-hour rated output |
KW/hphp |
5.66/7.7 |
| 12-hour rated output |
KW/hp |
5.15/7 |
| Specific fuel consumption |
g/kw.h |
≤287 |
| Specific lube oil consumption |
g/kw.h |
≤4.08 |
| Cooling mode |
|
Condenser (Radiator) |
Main farm implements (optional)
|
Anti-skid steel wheel Model 100-640
Single-furrow plough Model 1LS-125
Turnover plough
Rotary tiller Model MX70-1
Sprinkler Model 50BPZ-45
Swather/reaper Model 4GL-100
Trailer 7C-0.8 (Standard) |
|
|
|
|
| Advantages︰ | It is of dual-function type for towing and driving purposes and has the features of reasonable construction, harmonious outward appearance, ample and stable power output, good reliability and cross-country ability as well. It can be used for many farming jobs in dry and paddy fields, orchards and vegetable gardens with suitable farm implements attached, such as rotavator for rotary tilling, single-plow for plough and trailer for transportation. |
|
|
Product Image
|
|

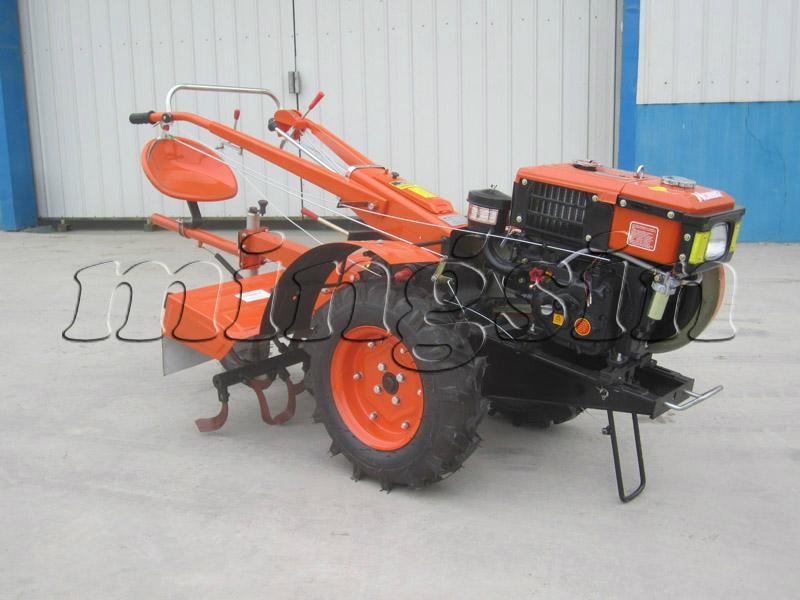

MX81 Walking Tractor

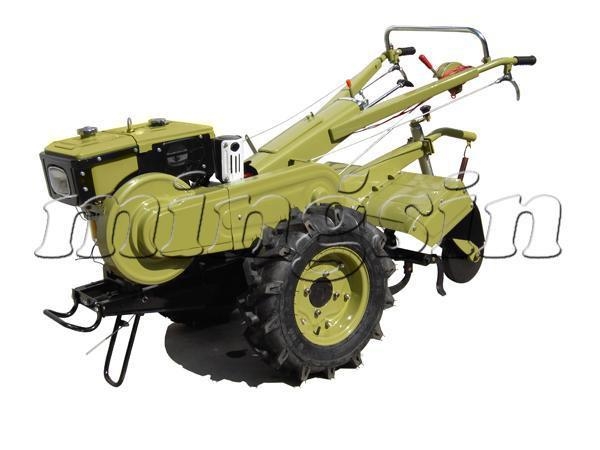

MX81 Power Tiller

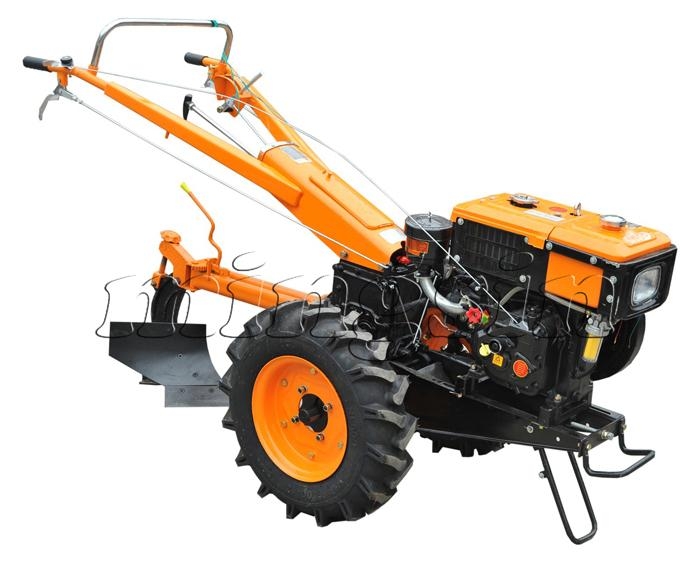

MX81 Hand Tractor
MX81 Walk Behind Tractor
MX81 Two Wheel Tractor
MX81 Motoblok

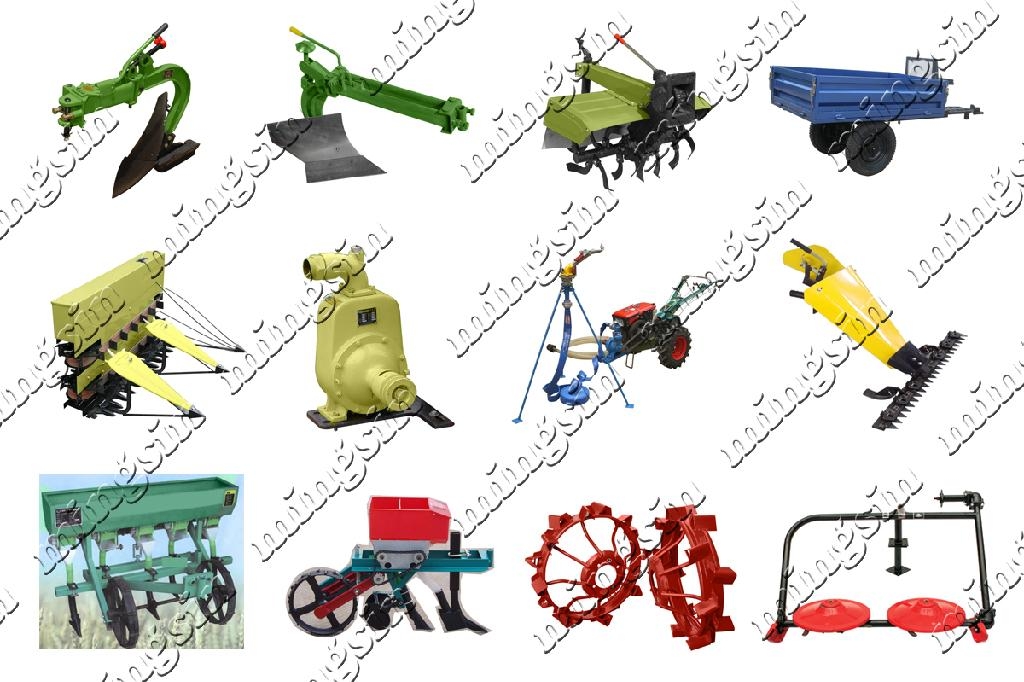

Implements of MX81 Walking Tractor
|
|
|
|
|
|
