1BZ series heavy-duty disc harrow
|
|
| Model No.︰ | 1BZ series |
| Brand Name︰ | MINGSIN |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|
|
|
|
Model
|
1BZ-1.8
|
1BZ-2.2
|
1BZ-2.5
|
1BZ-3.0
|
1BZ-3.4
|
|
Overall size (cm)
|
480*200*134
|
482*244*134
|
532*288*134
|
532*332*134
|
582*376*134
|
|
Weight (kg)
|
1050-1100
|
1250-1300
|
1380-1430
|
1500-1550
|
1650-1700
|
|
Working width (m)
|
1.8
|
2.0
|
2.5
|
3.0
|
3.4
|
|
Working depth (cm)
|
20
|
|
Disc space (mm)
|
230
|
|
Qty. of disc (pc)
|
16
|
20
|
24
|
28
|
32
|
|
Dia. Of disc (mm)
|
660
|
|
Ground clearance mm)
|
>160
|
|
Productivity (ha/h)
|
1.1
|
1.3
|
1.4
|
1.7
|
1.9
|
|
Matched power (hp)
|
65-80
|
75-90
|
80-100
|
90-100
|
100-120
|
|
Linkage
|
Trailed
|
|
|
|
|
| Advantages︰ | The 1BZ series heavy-duty offset disc harrow are mainly used for cleaning away stuble of plants before tillage, or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.
This series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and change directiong on the edge of fields. |
|
|

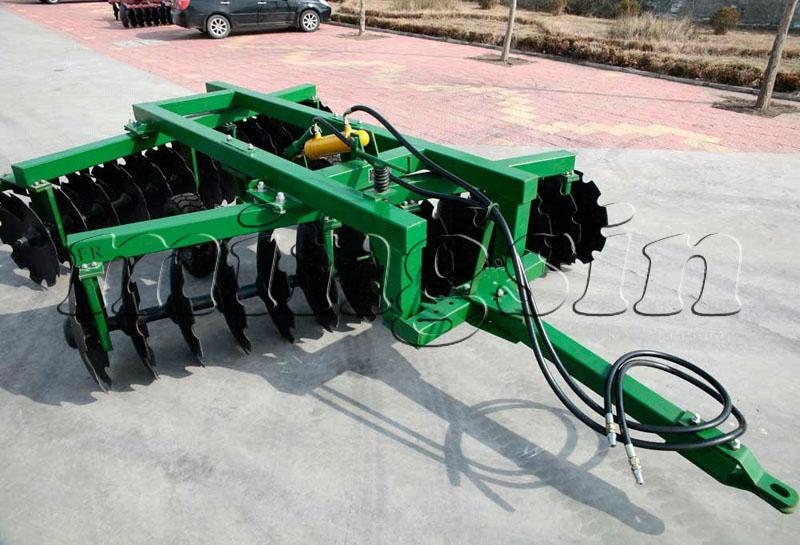

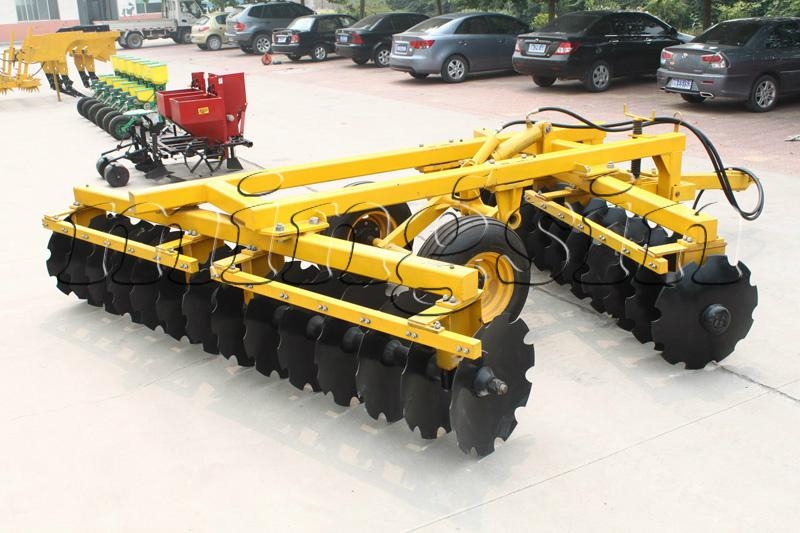

Product Image
|
|
|
