1LYQ series driven disc plough
|
|
| Model No.︰ | 1LYQ series |
| Brand Name︰ | MINGSIN |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|
|
|
|
Model
|
1LYQ-322
|
1LYQ-422
|
1LYQ-522
|
1LYQ-622
|
1LYQ-722
|
1LYQ-822
|
1LYQ-922
|
|
Matched power (hp)
|
12~18
|
18~25
|
25~35
|
40~60
|
50~70
|
65~80
|
70~90
|
|
Cultivating width (cm)
|
66
|
88
|
110
|
132
|
154
|
176
|
198
|
|
Dia. of disc(mm)
|
500
|
500
|
500
|
560
|
560
|
560
|
560
|
|
Cultivating depth (cm)
|
12~20
|
|
Output speed (r/min)
|
540~740
|
|
Working speed (km/h)
|
3~4
|
|
Oil cost (kg/acre)
|
0.60~0.75
|
|
Adjustable range of machines’ dip angle
|
28±5°
|
|
Weight (kg)
|
216
|
240
|
276
|
321
|
357
|
393
|
416
|
|
Overall dimensions(mm)
|
L
|
855
|
965
|
1075
|
1210
|
1325
|
1440
|
1555
|
|
W
|
1145
|
1365
|
1585
|
1805
|
2025
|
2245
|
2465
|
|
H
|
1050
|
1050
|
1050
|
1050
|
1050
|
1050
|
1050
|
|
|
|
|
| Advantages︰ | 1LYQ series driven disc plough is the vertical type disc plough. Under the driven power of the tractor’s PTO, the disc has rotary cutting work, which could use the power of the tractor completely, and it is suitable for the work in the paddy field and wet field. Except for the work of plough in the paddy filed, it also do weeding work in high efficiency. |
|
|

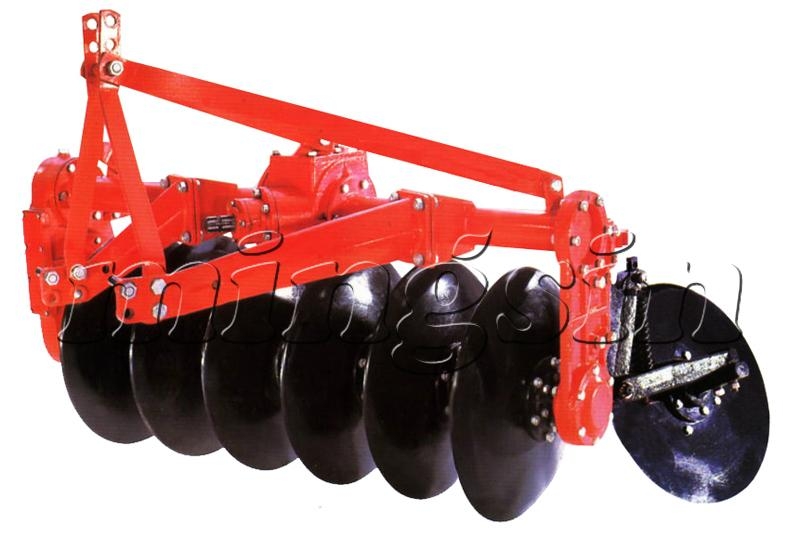

Product Image
|
|
|
