CT150-8 excavator
|
|
| Model No.︰ | CT150-8 |
| Brand Name︰ | - |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|
|
|
SPECIFCATIONS
|
Model
|
CT150-8
|
|
Operating weight
|
14.250 KG
|
|
Travel speed
|
2.7/4.6km/h
|
|
Bucket Capacity
|
0.55m3(SAE)
|
|
Tracking force
|
126 kn
|
|
gradeability
|
35°(70%)
|
|
Swing speed
|
12 RPM
|
|
Bucket digging force
|
99 kn
|
|
Ground Pressure
|
42 KPa
|
|
Arm digging force
|
65kn
|
|
Operating weight
|
14.250 KG
|
DIMENSIONS
|
Model
|
CT150-8
|
|
Boom Length
|
4.600 mm
|
|
Arm Length
|
2.520 mm
|
|
Upperstructure width
|
2.490 mm
|
|
Undercarriage width
|
2.495 mm
|
|
Overall Height with cabinet
|
2.670 mm
|
|
Rear swing radius
|
2.310 mm
|
|
Clearance under counter weight
|
908 mm
|
|
Tumbler Distance
|
2.930 mm
|
|
Ground clearance
|
440 mm
|
|
Overall length for transportation
|
7.723 mm
|
WORKING RANGE
|
Model
|
CT150-8
|
|
MAX digging radius
|
8.387 mm
|
|
MAX digging radius at ground lever
|
8.261 mm
|
|
MAX digging depth
|
5.569 mm
|
|
MAX vertical wall digging depth
|
4.500 mm
|
|
MAX digging height
|
8.659 mm
|
|
MAX dumping height
|
6.200 mm
|
HYDRAULIC SYSTEM
|
Model
|
CT150-8
|
|
MAIN PUMP
|
TYPE
|
|
|
AXIAL PISTON PUMP ＆ GEAR PUMP
|
|
|
CONSTANT POWER VARIABLE DISPACEMENT WITH GEAR PUMP OVERRIDE CONTROL
|
|
PILOT PUMP
|
TYPE
|
|
|
GEAR PUMP
|
|
|
SWING MOTOR
|
|
|
ATTACHMENTS
|
|
|
over load pressure
|
|
|
|
|
| Advantages︰ | America made 50ling In conformity with the EU III emission control regulations Imported hydraulic components, guarantee for 3 yrs under normal use and maintenance Japan made KYB main pump, multi-circuit valve, swing motor, walking motor, South Korea made gasoline tank On-line digital monitoring and control system GPS satellite position(optional)and remote diagnose system(optional) Rubber pedrail(optional, or steel pedrail), no damage to the ground of road full opened engine hood and easy up-forward-lifted cab Cold&warm air conditioner(optional) |
|
|

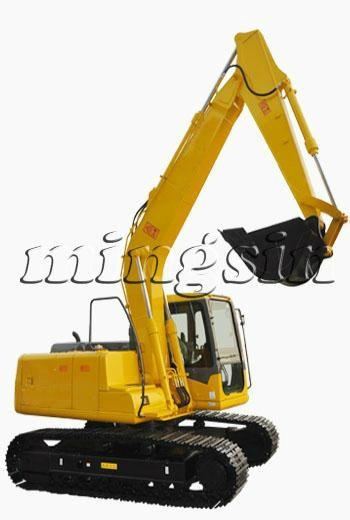

Product Image
|
|
|
