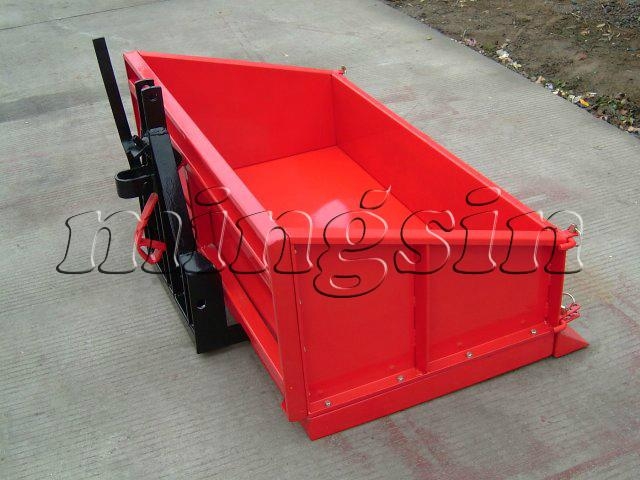

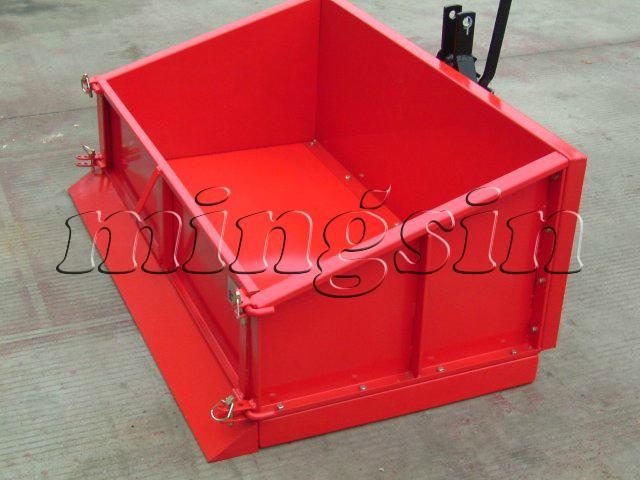

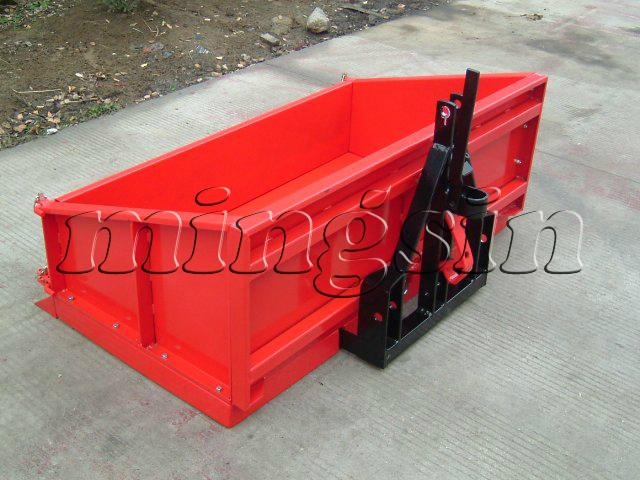

B series transport box
|
|
| Model No.︰ | B series |
| Brand Name︰ | MINGSIN |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|
|
|
|
Size
|
Weight
|
Capacity
|
Max HP
|
Body Material
|
Lift Arm Pins
|
Number of Arms
|
|
B100 (100cm)
|
70 kg
|
0.32 m3
|
30 hp
|
3 mm
|
Cat.1
|
1
|
|
B110 (110cm)
|
78 kg
|
0.36 m3
|
35 hp
|
3 mm
|
Cat.1
|
1
|
|
B120 (120cm)
|
86 kg
|
0.40 m3
|
40 hp
|
3 mm
|
Cat.1
|
1
|
|
B130 (130cm)
|
94 kg
|
0.44 m3
|
50 hp
|
3 mm
|
Cat.1
|
1
|
|
B150 (150cm)
|
105 kg
|
0.51 m3
|
60 hp
|
3 mm
|
Cat.1
|
1
|
|
125cm(4ft)
|
180 kg
|
0.34 m3
|
50 hp
|
3 mm
|
Cat.1
|
1
|
|
150cm(5ft)
|
285 kg
|
0.64 m3
|
80 hp
|
5 mm
|
Cat.2
|
1
|
|
180cm(6ft)
|
330 kg
|
0.76 m3
|
100 hp
|
5 mm
|
Cat.2
|
1
|
|
200cm(6ft 6")
|
352 kg
|
0.80 m3
|
100 hp
|
5 mm
|
Cat.2
|
1
|
|
213cm(7ft)
|
395 kg
|
0.85 m3
|
100 hp
|
6 mm
|
Cat.2
|
1
|
|
244cm(8ft)
|
480 kg
|
0.94 m3
|
100 hp
|
6 mm
|
Cat.2
|
2
|
|
|
|
|
| Advantages︰ | 1. Manufactured to the highest of standards, the hydraulic box has a robust and durable steel construction.
Heavy duty nose blade for extra strength.
2. This implement combines power and strength to withstand the toughest of work loads through a rugged construction.
3. Heavy duty hydraulic ram used to eliminate stress caused by uneven loading.
4. Scraper blade fitted as standard for leveling work.
5. Suitable for both 2WD and 4WD high H.P. tractors. |
|
|
