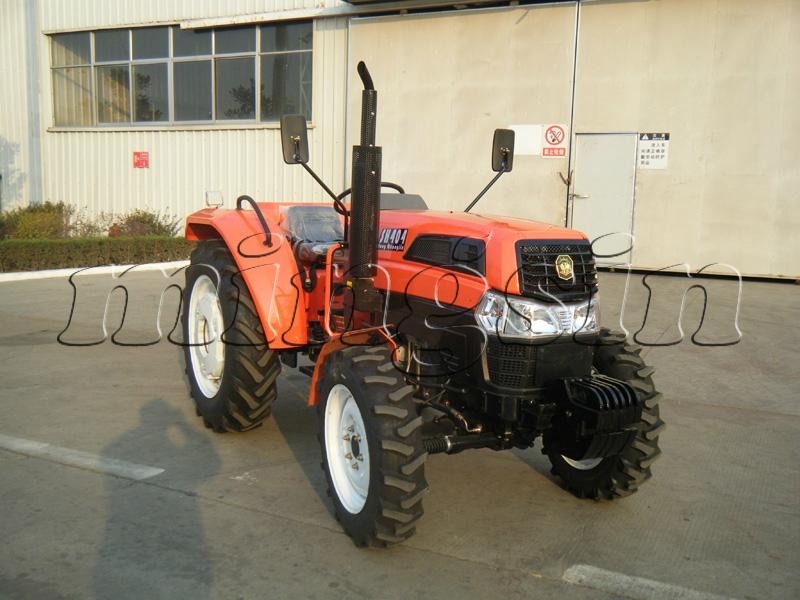

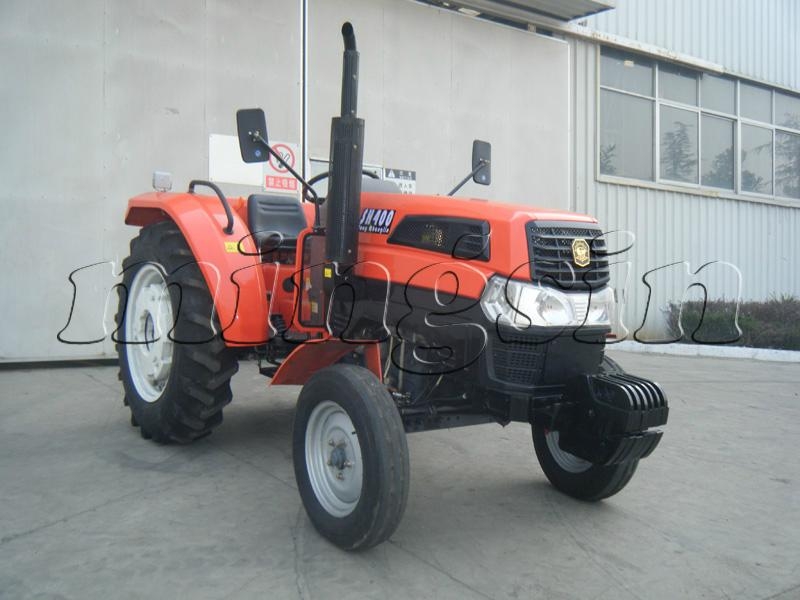

SH-400 / SH-404 tractor
|
|
| Model No.︰ | SH-400 / SH-404 |
| Brand Name︰ | - |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|
|
|
|
Model
|
|
SH400
|
SH404
|
|
Type
|
/
|
4×2
|
4×4
|
|
|
dimension(L*W*H)
|
mm
|
3700×1620×2130
|
3700×1620×2130
|
|
|
wheelbase(F/R)
|
mm
|
1200-1500(regular1300)
/1200-1500(regular 1300)
|
1250/1200-1500(regular1300)
|
|
|
Wheel base(F/R)adjustment
|
/
|
Step adjust/step adjust
|
Can not/step adjustment
|
|
|
Mini ground clearance
|
mm
|
400
|
325
|
|
|
Mini using weight
|
kg
|
1850
|
2120
|
|
|
Max counterweight
|
kg
|
F106/R180
|
F127/R180
|
|
|
Gear shit (F/R/Climb)
|
/
|
8/4/0 or8/8/0
|
8/4/0 or 8/8/0
|
|
|
Max traction
|
kN
|
≥8.3
|
≥11
|
|
|
Engine 1
|
Model
|
/
|
SL3105ABT
|
|
|
|
Inspiratory
|
/
|
Natural
|
|
|
|
Cylinder no
|
pcs
|
3
|
|
|
|
Cylinder diameter*stroke
|
mm
|
105×117
|
|
|
|
Rated power
|
kW
|
29.4
|
|
|
|
Rated turning
|
r/min
|
2200
|
|
|
|
Engine 2
|
Model
|
/
|
QC490/T40
|
|
|
|
Inspiratory
|
/
|
Natural
|
|
|
|
Cylinder no
|
pcs
|
4
|
|
|
|
Cylinder diameter*stroke
|
mm
|
90×105
|
|
|
|
Rated ppower
|
kW
|
29.4/40HP
|
|
|
|
Rated turning
|
r/min
|
2400
|
|
|
|
Steering
|
/
|
Hydraulic
|
Hydraulic
|
|
|
Brake
|
/
|
Wet disc brake,
Mechical operate
|
Wet disc brakes mechanical operate
|
|
|
Clutch
|
/
|
Dry single action/double
|
Dry single-acting/double action
|
|
|
Mini turing radius
|
m
|
3.1±0.3
|
3.4±0.3
|
|
|
Tyre (F/R)
|
/
|
6.0-16/12.4-28
|
8.3-20/12.4-28
|
|
|
Tyre pressure(F/R)
|
kPa
|
200~250/80~120
|
90~120/80~120
|
|
|
Suspension
|
/
|
Rear 3point
|
Rear 3 point
|
|
|
Suspension type
|
/
|
1
|
1
|
|
|
Frame max lift force
|
kN
|
9
|
9
|
|
|
Adjust
|
/
|
Force bit control
|
Force-bit control
|
|
|
Hydraulic output
|
/
|
M20×1.5
|
M20×1.5
|
|
|
PTO shaft type
|
/
|
Semi-independent
|
Semi-independent
|
|
|
PTO shaft turning
|
r/min
|
540/760
|
540/760
|
|
|
PTO shaft power
|
kW
|
25.0
|
25.0
|
|
|
|
|
|
| Advantages︰ | 1. Fujian Lijia SL3105ABT engine, direct injection, water-cooling or firewood QC490/T40 engine, direct injection, the mandatory water cooled;
2. Patented design flow line hood, nice; 3. Two-wheel drive; class adjustable front and rear;
4. 84 ordinary shifting or 88 shuttle shift; clutch shift; with differential lock; 5. Dry dual role clutch;
6. Dual chip oil bath disc brakes, the brakes only need a small pedal efforts even in repeated after heavy work to maintain high operating efficiency;
7. Hydraulic steering, light sensitive;
8. Power output (540/760 r / min);
9. Adjustable seat; split floor;
10.Category three point suspension: 1; force bit individually adjustable raised ; 11.Front and rear tire :6.0-16 / 12.4-28 (optional paddy fields round);
12. Maintenance-free storage battery; 13. Ooptional rear weight;
14. Optional air brakes;
15. GB security guards. |
|
|
