Description:

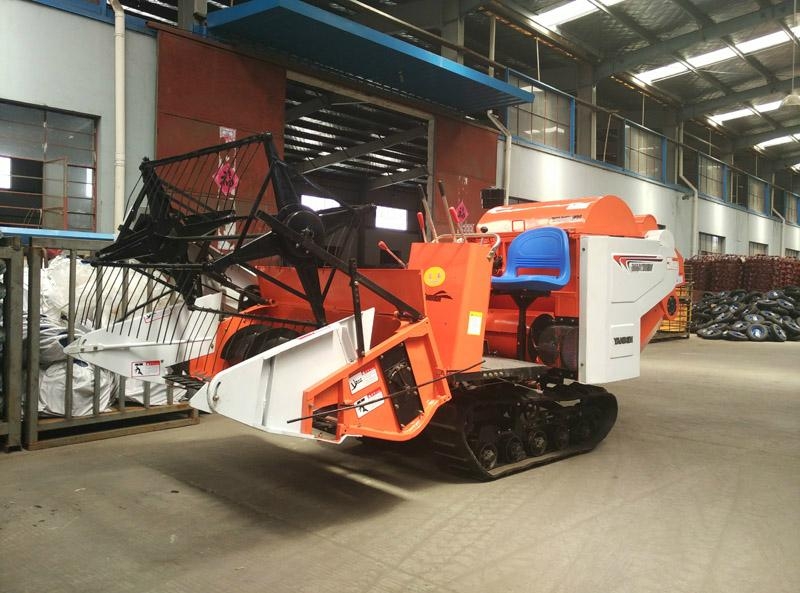

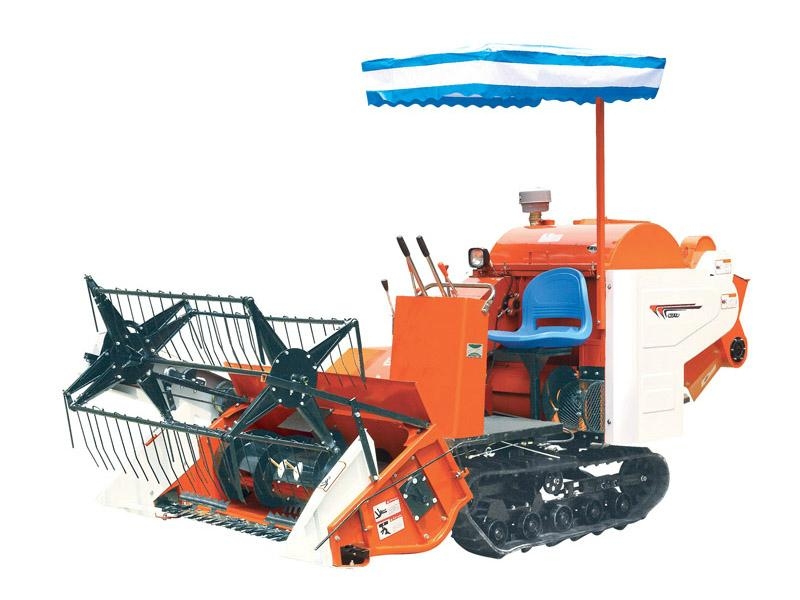

Combine harvester 4LZ-1.0 is a newly developed whole-feed for wheat and rice. It features light weight, low ground pressure and reliable paddy filed moving. The machine has advantages of reliable performance and stable quality for the special harvester gear-box, combination of fan and sieve system and twice grain cleaning device. It is easy to make maintenance with outer assembling of diesel engine and it is convenient for us to operate for reasonable designing of control system and comfortable driver’s seat. It is suitable for harvesting in small field of hilly land for its small turning radium and flexible operation.
Main parameters:
|
Harvester model
|
4LZ-1.0
|
|
Engine model
|
1125
|
|
Engine output
|
19.8/2200(kw/rpm)
|
|
Net weight
|
1200(kg)
|
|
Dimension (LXWXH)
|
3800 x 1750 x 1650 (mm)
|
|
Rated cutting width
|
1360(mm)
|
|
Rated feed capacity
|
1.0(kg/s)
|
|
Caterpillar width/link distance/tooth quantity/gauge
|
280/90/38/780(mm)
|
Main performance:
|
Item
|
wheat
|
rice
|
|
Production efficiency
|
0.06-0.26
|
|
Fuel consumption
|
12-18
|
|
Total loss rate(%)
|
≤1.2
|
≤3.0
|
|
Impurity rate
|
≤2.0
|
≤2.0
|
|
Crushing rate(%)
|
≤1.0
|
≤1.5
|
