4L-0.5L Small Combined Harvester
|
|
| Model No.︰ | 4L-0.5L |
| Brand Name︰ | Mingsin |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|
|
|
|
Description
|
Unit
|
Parameters
|
|
Model
|
/
|
4L-0.5
|
|
Type
|
/
|
Self-propelled and whole feeding
|
|
Engine
|
Fuel
|
/
|
Diesel
|
|
|
Model
|
/
|
ZH196
|
|
|
Type
|
/
|
Single cylinder, water cooling, 4-stoke and horizontal type
|
|
|
Rated output
|
Kw
|
8.53
|
|
|
Rated rotary speed
|
r/min
|
2400
|
|
Overall dimensions (L*W*H)
|
mm
|
3570*1460*1480 (working)
|
|
Operating weight
|
kg
|
510
|
|
Cutting header width
|
mm
|
1100
|
|
Feeding capacity
|
t/h
|
1.8
|
|
Min. ground clearance
|
mm
|
210
|
|
Principal working speed
|
Km/h
|
1.4-3.2
|
|
Production efficiency
|
h㎡/h
|
0.053-0.133
|
|
Fuel consumption
|
Kg/ h㎡
|
10.5-13.5
|
|
Type of cutting blade
|
/
|
reciprocating
|
|
Type of head auger
|
/
|
Spiral steak finger type
|
|
Real
|
Type
|
/
|
Eccentric dial tooth type
|
|
|
Diameter
|
mm
|
560
|
|
|
Quantity
|
pcs
|
4
|
|
Drum of thresher
|
Quantity
|
pcs
|
1
|
|
|
Type
|
/
|
Axial screw tooth type
|
|
|
Size (external*length)
|
mm
|
330*755
|
|
Concave plate sieve type
|
/
|
Grid fixed
|
|
Fan
|
Type
|
/
|
Fixed
|
|
|
Diameter
|
mm
|
242
|
|
|
Quantity
|
pcs
|
1
|
|
Crawler
|
Guiding wheel
|
/
|
4.00-8
|
|
|
Crawler
|
/
|
Rubber crawler
|
|
Min. turning radius
|
Left
|
mm
|
4800
|
|
|
Right
|
mm
|
4000
|
|
Gearbox
|
/
|
Straight gear transmission
|
|
Brake
|
/
|
Braking ring expanding
|
|
|
|
|

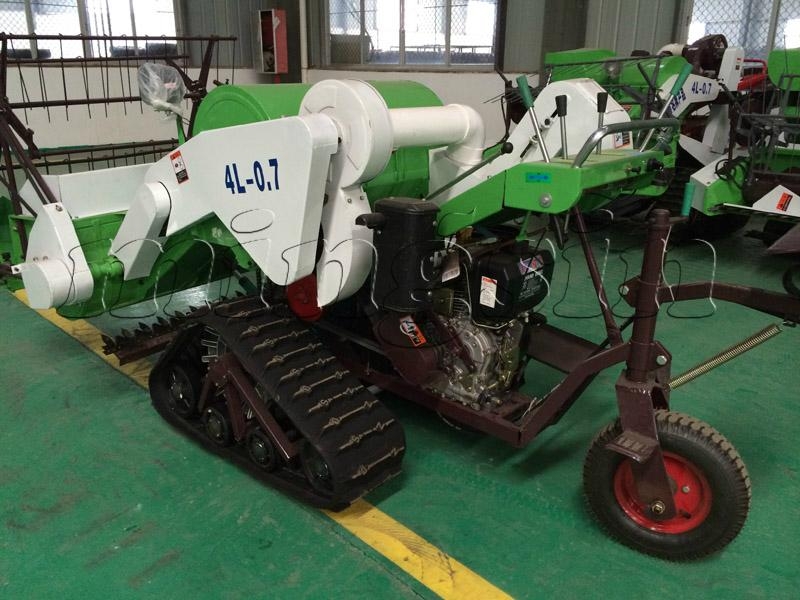

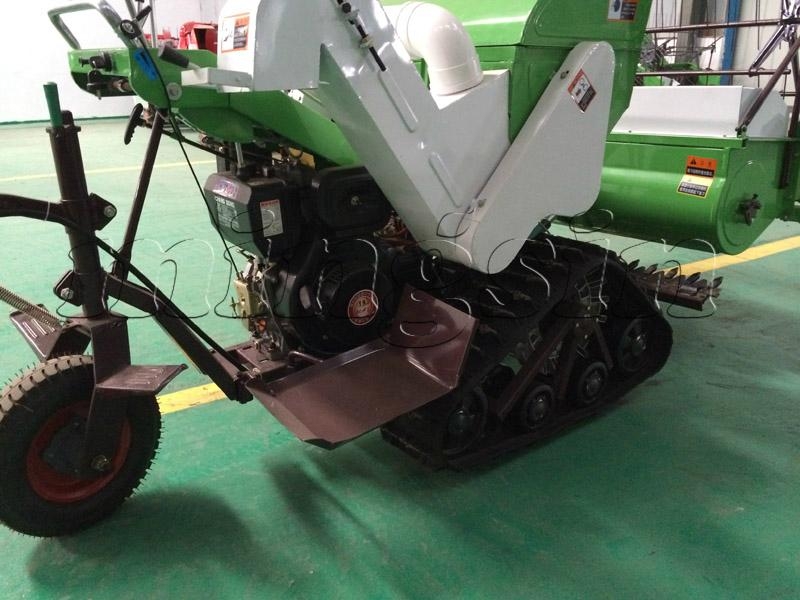

Product Image
|
|
|
