4L-0.5 Small Combined Harvester
|
|
| Model No.︰ | 4L-0.5 |
| Brand Name︰ | MINGSIN |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|
|
|
|
Description
|
Unit
|
Parameters
|
|
Model
|
/
|
4L-0.5
|
|
Type
|
/
|
Self-propelled and whole feeding
|
|
Engine
|
Fuel
|
/
|
Diesel
|
|
|
Model
|
/
|
ZH196
|
|
|
Type
|
/
|
Single cylinder, water cooling, 4-stoke and horizontal type
|
|
|
Rated output
|
kw
|
8.53
|
|
|
Rated rotary speed
|
r/min
|
2400
|
|
Overall dimensions (L*W*H)
|
mm
|
3570*1460*1480 (working)
|
|
Operating weight
|
kg
|
510
|
|
Cutting header width
|
mm
|
1100
|
|
Feeding capacity
|
t/h
|
1.8
|
|
Min. ground clearance
|
mm
|
210
|
|
Principal working speed
|
Km/h
|
1.4-3.2
|
|
Production efficiency
|
hm2/h
|
0.053-0.133
|
|
Fuel consumption
|
Kg/hm2
|
10.5-13.5
|
|
Type of cutting blade
|
/
|
reciprocating
|
|
Type of head auger
|
/
|
Spiral steak finger type
|
|
Real
|
Type
|
/
|
Eccentric dial tooth type
|
|
|
Diameter
|
mm
|
560
|
|
|
Quantity
|
pcs
|
4
|
|
Drum of thresher
|
Quantity
|
pcs
|
1
|
|
|
Type
|
/
|
Axial screw tooth type
|
|
|
Size (external*length)
|
mm
|
330*755
|
|
Concave plate sieve type
|
/
|
Grid fixed
|
|
Fan
|
Type
|
/
|
Fixed
|
|
|
Diameter
|
mm
|
242
|
|
|
Quantity
|
pc
|
1
|
|
Tyre
|
Guiding wheel
|
/
|
4.00-8
|
|
|
Driving wheel
|
|
6.00-12
|
|
Min. turning radius
|
Left
|
mm
|
4800
|
|
|
Right
|
|
4000
|
|
Gearbox
|
/
|
Straight gear transmission
|
|
Brake
|
/
|
Braking ring expanding
|
|
|
|
|
| Advantages︰ | 1. Model 4L-0.5 small combined harvester is a newly developed whole-feed combine harvester for wheat and rice.
2. It has the chassis of power tiller, when disassemble the relevant parts for the harvester, it could be changed to one power tiller.
3. It features simple design, compact construction and light weight.
4. It features reliable performance, east operation and easy maintenance.
|
|
|

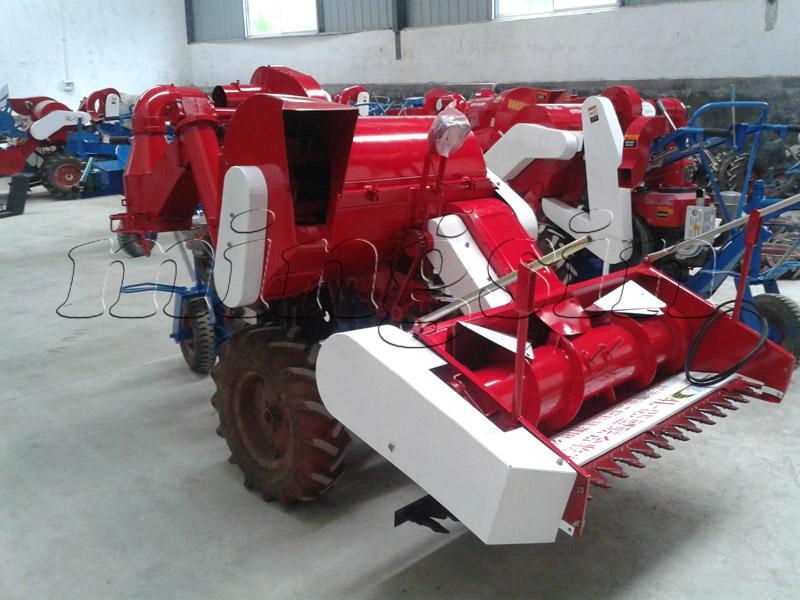

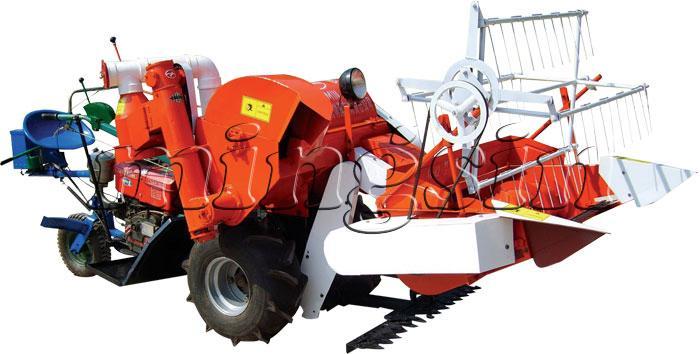

Product Image
|
|
|
