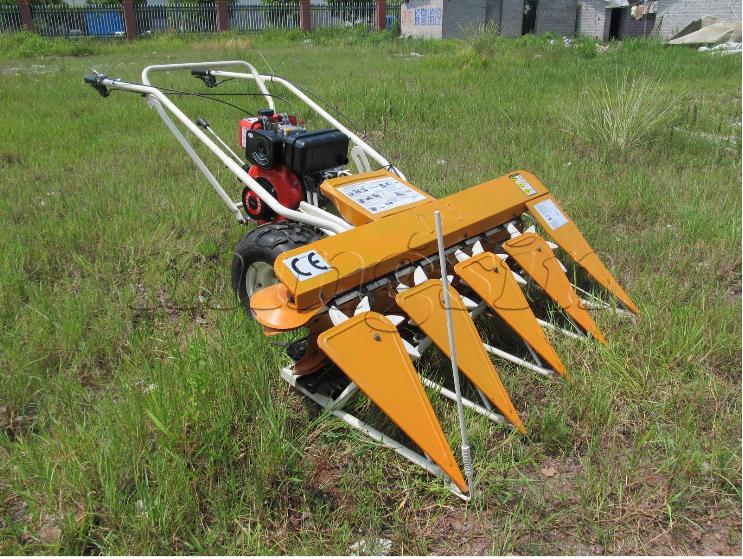

4S-120 Reaper
|
|
| Model No.︰ | 4S-120 |
| Brand Name︰ | Mingsin |
| Country of Origin︰ | China |
| Unit Price︰ | US $ 1200 / pc |
| Minimum Order︰ | 5 pc |
|
|
|
|
|
|
|
|
| MODEL |
4S-120D |
4S-120G |
| Overall dimensions:(L×W×H) |
2390*1470*900MM |
2390*1470*900MM |
| Cutting width |
120cm |
120cm |
| Weight |
125kg |
116kg |
| Working capacity |
3-4hr/ha(1.2-1.6hr/acre) |
3-4hr/ha(1.2-1.6hr/acre) |
|
|
|

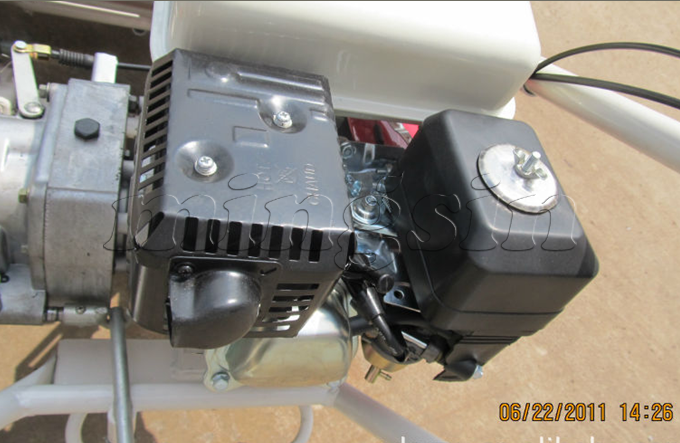

| Engine type |
Air-cooled;4-stroke;OHV;single cylinder, diesel engine |
Air-cooled;4-stroke;OHV;single cylinder, gasoline engine |
| Engine model |
F210S/211cc |
168F |
| Rated Power Output |
(3.2HP)2.35kw |
(5.5HP)4.1kw |
| Starting System |
Recoil/Electric |
Recoil/Electric |
| Engine Oil System Capacity |
0.75 Liters |
0.6 Liters |
| Fuel Capacity |
2.5 Liters |
3.6 Liters |
| Bore x Stroke-mm |
70x55mm |
|
| Air Cleaner |
Semi-dry;Oil bath;Dual |
Semi-dry; Oil bath;Dual |
| Net weight |
27kg |
15kg |
| Fuel Consumption-g/hp |
209 |
|
Packing
|
Wooden case |
| N.W/G.W.:125/165KG |
N.W/G.W.:116/140KG |
Conveyance:
|
Qty/20' FCL.: 32pcs |
Qty/20' FCL.: 32pcs |
| Qty/40'(HQ) FCL.:90pcs |
Qty/40'(HQ) FCL.: 90pcs |
| MODEL |
4S-120D |
4S-120G |
| Overall dimensions:(L×W×H) |
2390*1470*900MM |
2390*1470*900MM |
| Cutting width |
120cm |
120cm |
| Weight |
125kg |
116kg |
| Working capacity |
3-4hr/ha(1.2-1.6hr/acre) |
3-4hr/ha(1.2-1.6hr/acre) |
|
|
|
| Engine type |
Air-cooled;4-stroke;OHV;single cylinder, diesel engine |
Air-cooled;4-stroke;OHV;single cylinder, gasoline engine |
| Engine model |
F210S/211cc |
168F |
| Rated Power Output |
(3.2HP)2.35kw |
(5.5HP)4.1kw |
| Starting System |
Recoil/Electric |
Recoil/Electric |
| Engine Oil System Capacity |
0.75 Liters |
0.6 Liters |
| Fuel Capacity |
2.5 Liters |
3.6 Liters |
| Bore x Stroke-mm |
70x55mm |
|
| Air Cleaner |
Semi-dry;Oil bath;Dual |
Semi-dry; Oil bath;Dual |
| Net weight |
27kg |
15kg |
| Fuel Consumption-g/hp |
209 |
|
Packing
|
Wooden case |
| N.W/G.W.:125/165KG |
N.W/G.W.:116/140KG |
Conveyance:
|
Qty/20' FCL.: 20pcs |
Qty/20' FCL.: 24pcs |
| Qty/40'(HQ) FCL.:48pcs |
Qty/40'(HQ) FCL.: 56pcs |
|
|
|
|
| Advantages︰ | 1. Light weight and compact structure.
2. Aluminium gearbox housing and transmission box housing.
3. Easy operating and high productivity. |
| Min Order︰ | 5 |
| Ship Date︰ | 20 |
| Standard Met︰ | ISO9000 |
|
|
