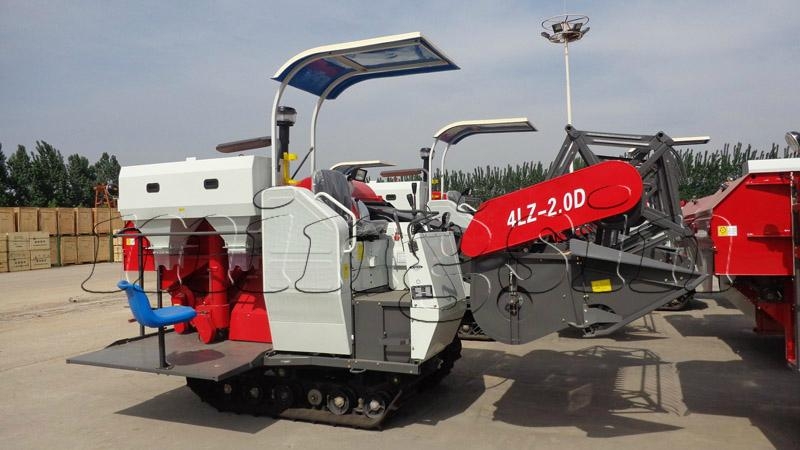

4LZ-2.0D Rice and Wheat Combine Harvester
|
|
| Model No.︰ | 4LZ-2.0D |
| Brand Name︰ | - |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|
|
|
|
|
Item
|
Indices (%)
|
|
Rice
|
Wheat
|
Cole
|
|
Total Loss Rate
|
≤3.0
|
≤1.2
|
≤8
|
|
Impurity Rate
|
≤2.0
|
≤2.0
|
≤6
|
|
Breakage Rate
|
≤1.5
|
≤1.0
|
≤0.5
|
|
Efficiency of Reliability
|
≥93%
|
|
Item
|
Unit
|
Size
|
|
Structure Style
|
/
|
Track Self-Walking Full-Feed
|
|
Applicability For Crop
(Physical Height)
|
mm
|
Paddy, wheat: 500-1200
|
Cole:601-700
|
|
Power Motive
|
kw/rpm
|
55/2400
|
|
Productivity of Pure Working Hour
|
hm2/h
|
Paddy,wheat:0.2-0.47
|
Cole:0.1-0.3
|
|
Fuel Oil Consumption per Hectare
|
kg/hm2
|
≤38
|
≤30
|
|
Outline Sizes in Working State
(L×W×H)
|
mm
|
4750×2350×2360
|
Cole
5020×2450×2300
|
|
Structural Weight
|
kg
|
Paddy, wheat:2350
|
Cole: 2450
|
|
Cutting Width
|
mm
|
2000
|
|
Feed Volume
|
kg/s
|
Paddy, wheat:2.0
|
Cole: 1.5
|
|
Minimum Gap of Off-Ground
|
mm
|
240
|
|
Style of Swerve
|
/
|
Hydraulic Style
|
|
Shift Modality
|
/
|
Automatic Mechanical Transmission +HST
Hydraulic Continuously Variable Transmission
|
|
Speed of Operation Forward
|
m/s
|
0~2.88, 0~4.54, 0~7.56
|
|
Stroke of Cutter
|
mm
|
II type
|
|
Auger Style of Cutting Table
|
/
|
Spiral Conveying
|
|
Outer Diameter of Auger of Cutting
|
mm
|
Φ470
|
|
Style of Reel
|
/
|
Eccentric Style
|
|
Diameter of Reel
|
mm
|
Φ900
|
|
No. of Plates of Reel
|
PCS
|
5
|
|
Conveyor Belt Style
|
/
|
Rake-Teeth Style
|
|
Threshing Roller Style
|
/
|
Tangential flow + Axial flow
|
|
Size of Threshing Roller(O.D. ×L)
|
Front Roller
|
mm
|
Φ540×650
|
|
|
Rear Roller
|
mm
|
Φ540×1285
|
|
Concave Style
|
/
|
Grid Screen×2
|
|
Angle Range of Concave
|
（°）
|
227°
|
|
Fan Style
|
/
|
Centrifugal
|
|
Diameter of Fan
|
mm
|
Φ328
|
|
Diameter of Grain Discharge auger
|
mm
|
Φ123
|
|
Crew Distance of Grain Discharge auger
|
mm
|
105
|
|
Re-Threshed Style
|
/
|
Back to Threshing Roller directly
|
|
Grain Receiving Style
|
/
|
Manual/hydraulic control
|
|
Clearance between Argue of Cutting
|
mm
|
15-18
|
|
Track
|
mm
|
400 or 450
|
|
|
|
|
| Advantages︰ | Favorable Advantages
1. 75HP diesel engine, 2 meters cutting width, Auto Transmission, high efficiency.
2. Double axial flow threshing cylinders and adjustable front & rear sieving plates ensure the grain more clean, less breakage and less loss.
3. Big width conveyer groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower the noise and vibration.
4. Lower ground pressure, better for passing in paddy field.
5. Extremely strong Chassis; Excellent waterproof suspension wheel system; Easier turning & control with friction disc brake and special heavy-duty gearbox for hydraulic steering combine harvester. |
|
|

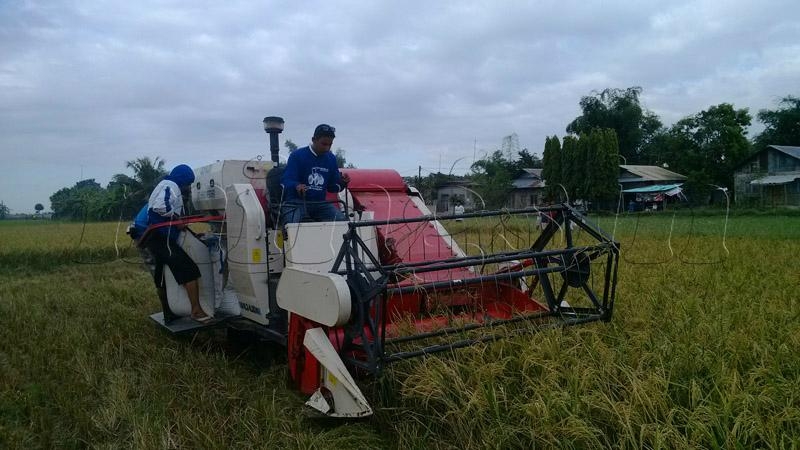

Product Image
|
|
Small grain box
Big grain box
|
|
|
|
|
|
